Keuntungan saka 150W Aluminium Switching Power Supply:
Versatility: Kanthi macem-macem pilihan output, 150W Aluminium Switching Power Supply bisa digunakake ing macem-macem aplikasi, kalebu otomatisasi industri, telekomunikasi, lampu LED, lan liya-liyane.
Daya Stabil lan Bisa Dipercaya: Sumber daya switch nyedhiyakake output daya sing stabil lan diatur, nglindhungi piranti sing disambungake saka fluktuasi voltase lan njamin operasi sing tepat.
Fitur Safety: 150W Aluminium Switching Power Supply nggabungake fitur safety kayata over-load, over-voltage, lan proteksi sirkuit cendhak, nglindhungi sumber daya lan piranti sing disambungake saka karusakan potensial.
Fitur
1. Proteksi: short-circuit, kakehan
2. 100% full-load umur
3. Tahan input mundhak 300VAC kanggo 5 detik
4. -20 ~ + 60 ℃ Suhu kerja
5. 5G geter dites
6. Efisiensi dhuwur, umur dawa, lan linuwih
7. Aplikasi: Mesin otomasi industri, Sistem kontrol industri, Pengujian lan alat ukur, Perkakas rumah tangga, Perkakas lampu LED, Peralatan penuaan, peralatan komunikasi IT
8. Garansi: 3 taun
9. Sertifikat: CE RoHS

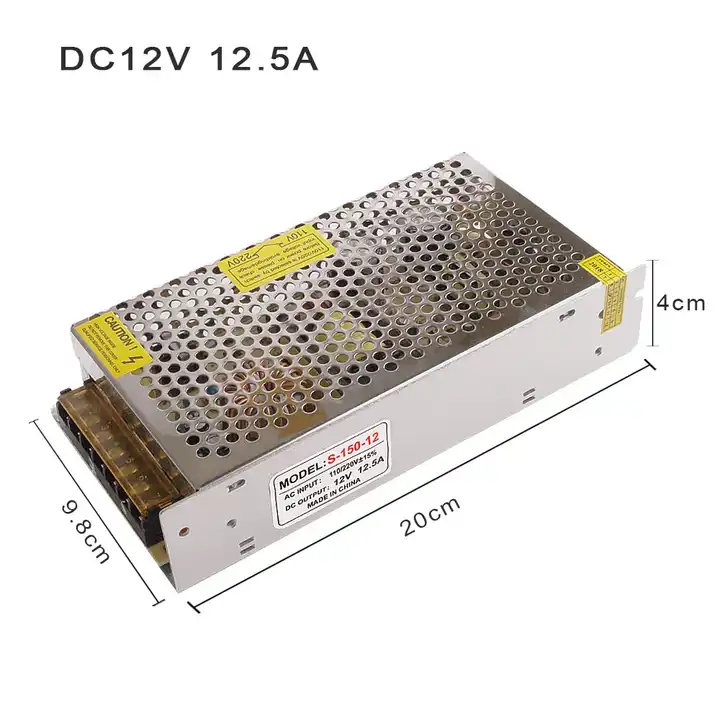

150W Aluminium Ngalih Power Supply Spesifikasi
NAMA: | DAYA LED, DRIVER LED, sumber daya Switching LED Adaptor daya LED, sumber daya Strip Led, SMPS LED, sumber daya swithcing aluminium |
||
Model No. | 150W | SW-150-12 | SW-150-24 |
Output | Tegangan DC | 12V | 24V |
Range Saiki | 0~12.5A | 0~6.255A | |
daya | 150W sumber daya led | ||
Ripple Lan Noise | Max 240mVp-p | ||
Tegangan ADJ. Range | 10~13V | 22~26V | |
Toleransi Tegangan | ± 5% | ||
Setup, Rise Time | 1500ms, 30ms / 230VAC | ||
Input | Range Tegangan | 90 ~ 260VAC | |
Range Frekuensi | 50~60Hz | ||
Efisiensi | > 0,85 | ||
PF | 0.6 | ||
saiki | 7A / 110VAC, 4A / 220VAC | ||
Arus Surge | 40A / 110VAC, 60A / 220VAC | ||
Arus bocor | Max 3.5mA/240VAC | ||
pangayoman | Kakehan beban | Ndhuwur 110% -150% daya dirating | |
voltase output mati, Recovery otomatis sawise kondisi fault dibusak | |||
Overvoltage | Ndhuwur Max. Tegangan (105% saka voltase dirating) | ||
voltase output mati, Recovery otomatis sawise kondisi fault dibusak | |||
Luwih saka suhu | 90 ℃ ± 5 ℃ (5 ~ 12V) 80 ℃ ± 5 ℃ (24V) | ||
voltase output mati, Recovery otomatis sawise kondisi fault dibusak | |||
lingkungan | Temp Kerja. & asor | "-20°C~+60°C, 20%~90%RH | |
Suhu panyimpenan & asor | "-40°C~+85°C, 10%~95%RH | ||
Safety | Tahan Tegangan | I/P-O/P: 1.5KVAC/1min; I/P-F/G: 1.5KVAC/1min; O/P-F/G: 0.5KVAC/1min; | |
Safety | GB4943 ;IEC60950-1; EN60950-1 | ||
EMC | EN55032:2015/AC:2016; EN61000-3-2:2014; EN61000-3-3:2013; EN55024:2010+A1:2015 | ||
LVD | EN60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 | ||
Liyane | adhem | hawa bebas | |
Umur urip | 20000 jam | ||
Ukuran (L * W * H) | 199 * 98 * 42 mm | ||
Bobot | 0.48KG | ||
Cathetan | 1. Data kasebut ing ndhuwur diukur ing input 230VAC lan 25 ° C. 2. Dis-sambungake input AC sadurunge mriksa sembarang mal-fenomena. 3. Priksa manawa INPUT&OUPUT ana ing kahanan sing bener sadurunge disambungake menyang sumber daya. 4. Datasheet mung kanggo referensi. Disaranake sampeyan njupuk sampling sadurunge pesenan massal. |
