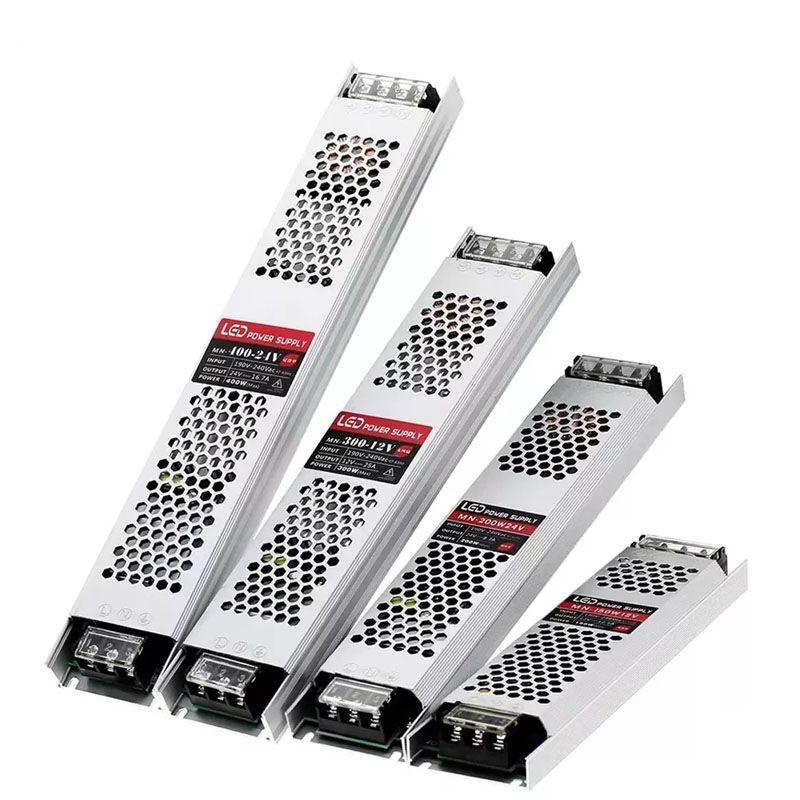

Sumber daya switching ultra tipis 150W, diprodhuksi dening STARWELL, pemasok terkenal lan berkualitas tinggi, nawakake kompatibilitas karo macem-macem aplikasi lampu LED. Iki dirancang kanggo ndhukung macem-macem instalasi cahya, kalebu:
1. LED linear cahya
2. Lampu strip LED
3. Lampu sorot LED
4. Lampu jalan
5. Lampu Taman
6. Lampu sorot
7. Lampu bawah tanah
8. Lampu tahan kelembapan
9. Lampu ing jero banyu
10. Lampu blumbang
11. Lampu malang
12. Lampu Taman
STARWELL, minangka perusahaan sing disertifikasi ISO9001, njaga langkah-langkah kontrol kualitas sing ketat kanggo njamin linuwih lan kinerja produke. Kompatibilitas sumber daya switching ultra tipis 150W kanthi macem-macem aplikasi lampu LED nambah fleksibilitas, saengga cocog kanggo macem-macem proyek lampu.

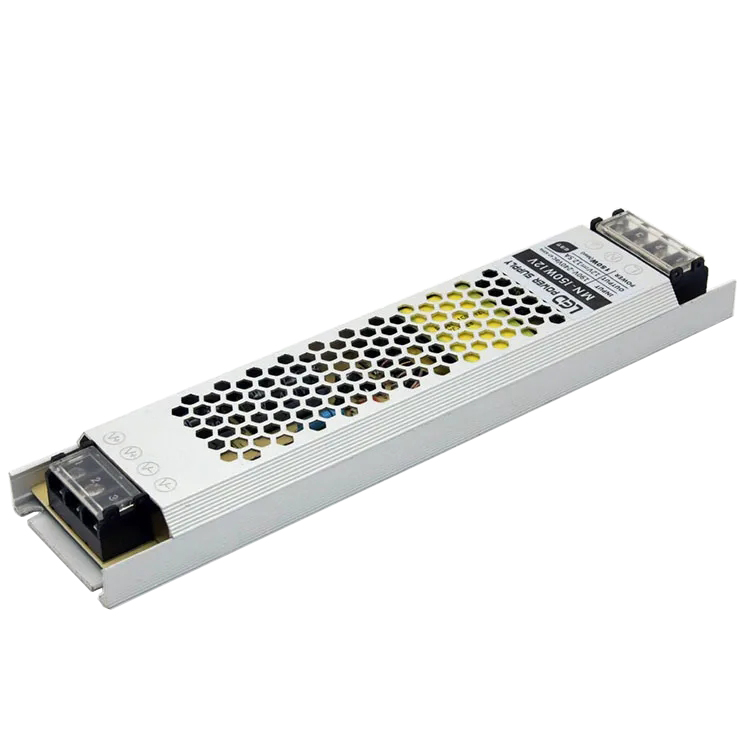

150W ultra thin switching power supply Spesifikasi:
ITEM | FUNGSI | WCB-150W12V | WCB-150W24V |
Output Karakteristik |
Tegangan Output DC | 12V | 24V |
Output Saiki | 12V 12.5A sumber daya led | 24V 6.25A sumber daya led | |
Daya Rated | 150W | 150W | |
Ripple & Noise | <200mVp-p | <200mVp-p | |
Range Tegangan Output | 11.4~12.6V | 22.8 ~ 25.2V | |
Toleransi Tegangan Output | ± 3% | ||
Aturan Line | 1% | ||
Peraturan Muatan | 2% | ||
Setup lan Rise Time | 3.0S, 20mS@115Vac,1.5S,20mS@230Vac | ||
Karakteristik Input | Tegangan Input Khas | 200 ~ 240Vac 50Hz | |
Max Input Range Tegangan | 180 ~ 264Vac 50Hz | ||
Efisiensi Khas | 85% | 85% | |
Maksimum Input Saiki | Max 1.5A @ 230Vac; | ||
Arus Inrush | Kurang saka 50A / 230Vac, wiwitan kadhemen | ||
Arus bocor | <0,75mA/240Vac | ||
Karakteristik pangayoman | Proteksi kakehan | 110% ~ 150% saka beban sing dirating. | |
Proteksi sirkuit cendhak | Jinis Proteksi: Mode Hiccup, Recovery otomatis | ||
Sinyal | Sinyal DC OK | Lampu LED kanggo nuduhake PSU urip | |
Ambient | Suhu sekitar | -30~60 ℃ (Referensi Kanggo Derating Curve) | |
Kelembapan Kerja | 20 ~ 90% RH non-kondensasi | ||
Suhu panyimpenan lan Kelembapan | -30~70 ℃, 10~95% RH, ora ana kondensasi | ||
Tahan Geter | 10 ~ 500Hz, 5G 10 menit/siklus, 60 menit saben bebarengan X, Y, Z | ||
Safety | Tahan Tegangan | Input-FG: 1500Vac Input-Output: 1500Vac Output-FG: 500Vac |
|
Ketahanan Isolasi | Input-FG: > 100M Ohm 500Vdc @ 25 ℃ & 70RH Input-Output: > 100M Ohm 500Vdc @ 25 ℃ & 70RH Output-FG: > 100M Ohm 500Vdc @ 25 ℃ & 70RH |
||
Packing | Unit Bobot | 0,19 Kg/PCS | |
Ukuran Unit | L235×W53×H21mm | ||
Packing lan Bobot | 80 PCS / BOX | ||
Ukuran Box Packing | L 495×W 250×H 290mm | ||
Aplikasi | SUPPLY DAYA LED Ultra Tipis, DRIVER LED, sumber daya Ngalih LED Adaptor daya LED, catu daya strip Led, SMPS LED, catu daya mode switch aluminium, DRIVER LAMPU LED, PASOKAN DAYA LAMPU LED, |
