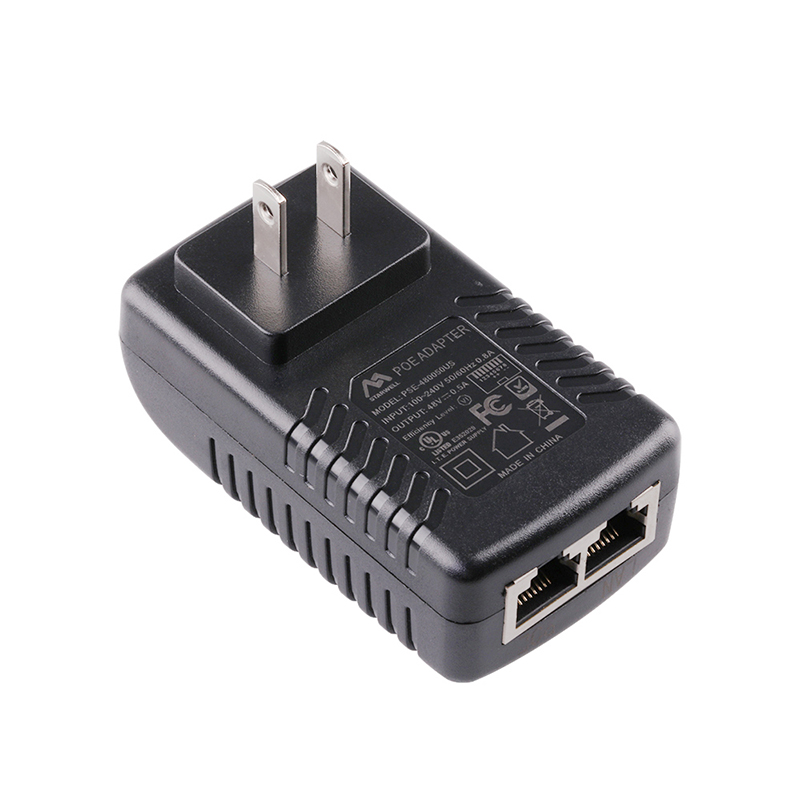

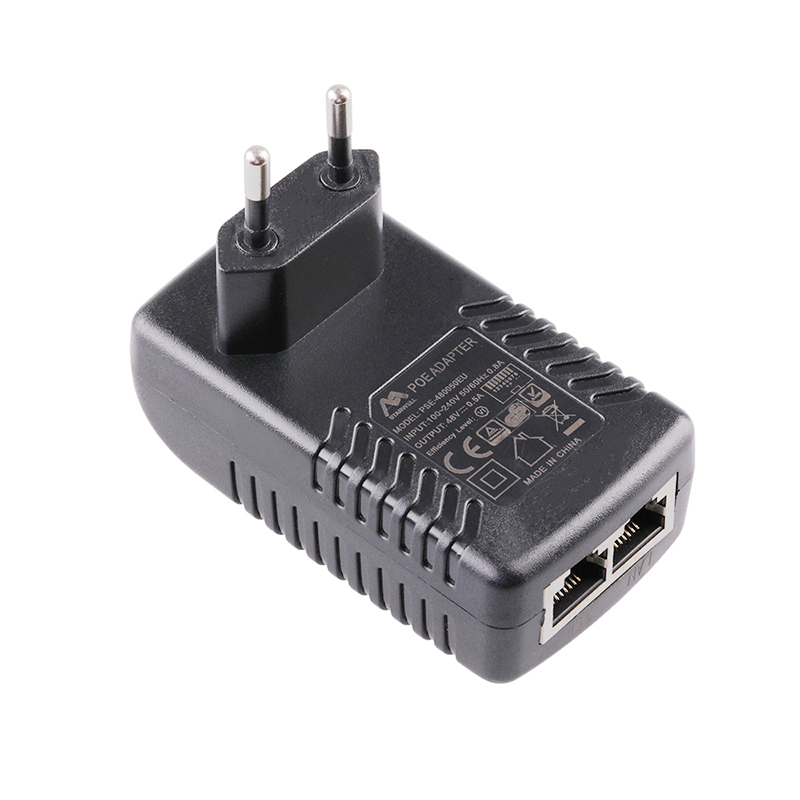

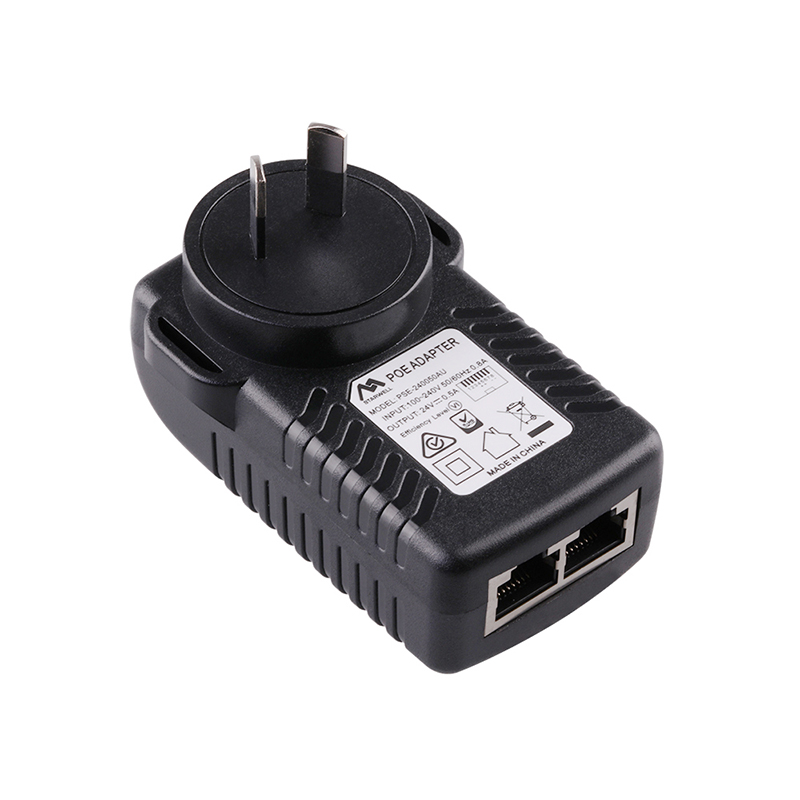

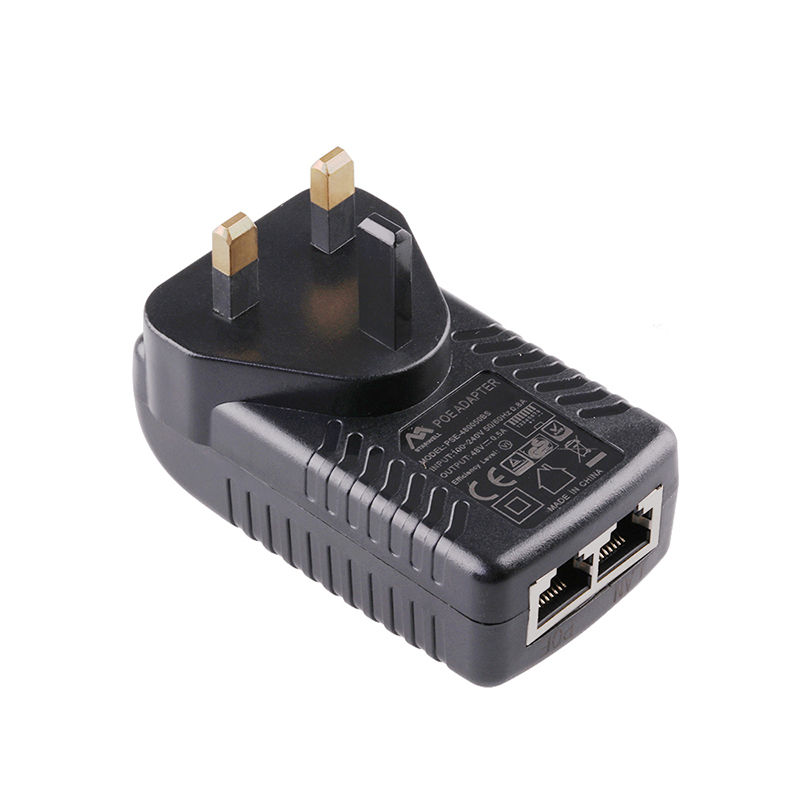

24W Wall Mounted POE Injector

STARWELL minangka salah sawijining pimpinan profesional China 24W Wall Mounted POE Injector kanthi kualitas dhuwur lan rega sing cukup. Ndhukung macem-macem tarif transmisi kalebu 10/100/1000M/2.5G/5G/10G, tundhuk karo standar IEEE 802.3.af/at/bt POE++.

Fitur:
input: 100-240VAC
output: 24V/0.5A, 24V/1A, 48V0.5A

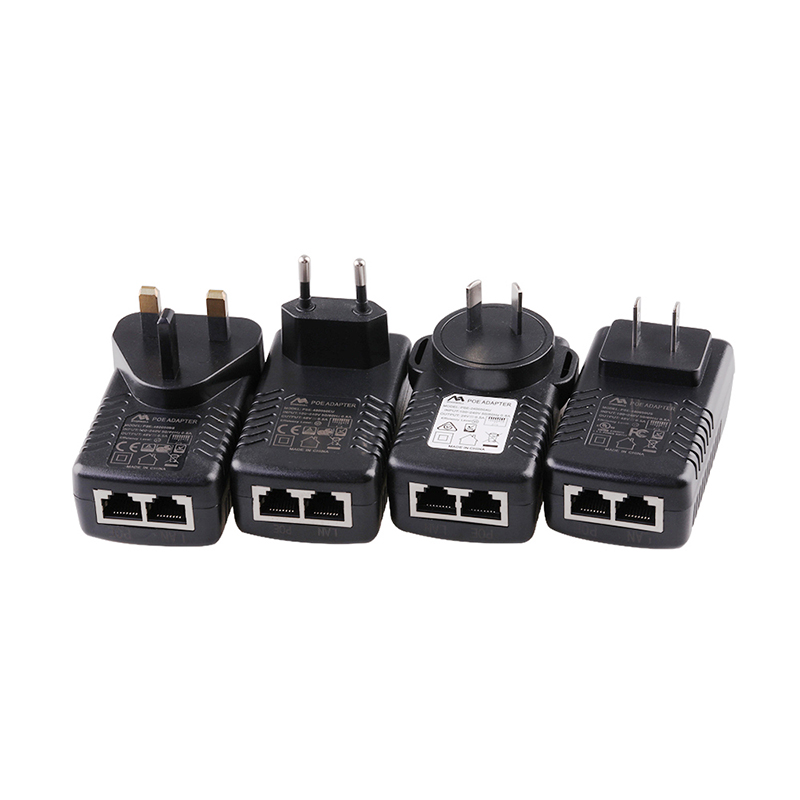

Tipe Plug: US/CN/EU/UK/AUS plug opsional
Sertifikat: UL, CE, FCC, TUV, UKCA
PORT DC: 2RJ45: Port 1: LAN, Port 2: POE
Tipe protokol: POE Pasif utawa POE Aktif opsional
PIN POE: 4,5(+)/7,8(-) Midspan / 1,2(+),3,6(-) Endspan / 4pairs1,2,4,5(+) 3,6,7,8 (-)
Protokol: Kompatibel karo IEE802.3af/IEEE802.3at
Kacepetan Data: 10/100/1000M/2.5G/5G/10G bps (opsional)
ukuran: 8446.9*31.7mm (ora kalebu plug)

Kirim Pitakonan

STARWELL minangka produsen 24W Wall Mounted POE Injector sing misuwur lan profesional sing adhedhasar ing China. Padha dikenal kanggo prodhuksi produk kualitas dhuwur ing prices cukup.

Injector POE kita dirancang kanggo ndhukung macem-macem tarif transmisi, kalebu 10/100/1000M/2.5G/5G/10G. Fleksibilitas iki ngidini integrasi lancar karo piranti Ethernet sing beda-beda, nyedhiyakake daya lan transmisi data sing dipercaya.

Ing babagan kepatuhan standar, injektor POE STARWELL netepi standar IEEE 802.3.af/at/bt POE++. Iki njamin kompatibilitas karo macem-macem piranti POE-aktif, nyediakake pangiriman daya efisien lan mbisakake fungsi kayata Manajemen piranti remot lan ngawasi daya.

Komitmen STARWELL kanggo kualitas dibayangke ing proses manufaktur lan prosedur uji coba sing ketat. Dheweke ngupayakake ngirim produk sing cocog utawa ngluwihi standar industri, njamin kinerja sing dipercaya lan umur dawa.

Kanthi fokus ing manufaktur berkualitas tinggi, rega sing kompetitif, lan netepi standar industri, STARWELL wis dadi panyedhiya injektor POE sing dipercaya ing pasar. Produk kasebut akeh digunakake ing aplikasi kayata sistem keamanan, kamera IP, titik akses nirkabel, lan telpon VoIP, lan liya-liyane.

STARWELL 24W Wall Mounted POE Injector Spesifikasi:

Item		5W 12W 18W 24W POE Power Adapter, POE injector, Power Over Ethernet kanggo router, Power Over Ethernet adaptor
Model		PSE-xxxyyyw
INPUT		100-240VAC 50/60Hz
Output		12V	15V	18V	24V	48V	56V
		0-2A	0-1.6A	0-1.33A	0-1.0A	0-5A	0.4A
Fitur	Ripple & Noise	<120mV
	Tingkat lintang energi	Eup 2.0, Doe VI, CEC VI, CoC VI
	Efisiensi	>88%
	Nginstal	Kasedhiya kanggo sistem Keamanan Kelas I / II
lingkungan	Suhu Operasi	-10 ~ +65 ℃, 10 ~ 95% RH non-kondensasi
	Suhu panyimpenan	-20 ~ +85 ℃ (Deleng "Kurva Derating")
	Kelembapan Panyimpenan	20 ~ 90% RH non-kondensasi
	Getaran	10 ~ 500Hz, 2G 10min./1siklus, 60menit. saben sumbu X, Y, Z
	Metode Cooling	by NTC (natural cooling)
Safety & EMC	Standar Keamanan	UL62368, ETL62368, EN62368, EN61558
	Persetujuan Safety	UL/cUL, ETL, CE, FCC, RoHS, UKCA, PSE, CB, SAA, KC kanggo liyane informasi, hubungi kita.
	EMC Stardard	EMC EMISSION: EN55032 kelas B (CISPR32), EN61000-3-2,-3, EAC TP TC 020EMC IMMUNITY: EN61000-4-2,3,4,5,6,8,11, EN55024; tingkat industri ringan, kriteria A, EAC TP TC 020
	MTBF	5K jam min. MIL-HDBK-217F (25 ℃)
Fungsi POE	Protokol	Kompatibel karo IEE802.3af/IEEE802.3at
	Tipe protokol	POE pasif / POE aktif (opsional)
	PIN POE	4,5(+)/7,8(-) Midspan / 1,2(+),3,6(-) Endspan utawa 1245+ 3678-
	Kacepetan Data	10/100/1000M/2.5G bps (opsional)
Macanicals	PORT DC	2*RJ45:10/100/1000Mbps, Port 1: LAN, Port 2: POE
	ukuran	84x46.99x37.1mm (LxWxH) ora kalebu plug
	Packing	100 g; 100pcs / 12.0Kg / 0.056CBM
