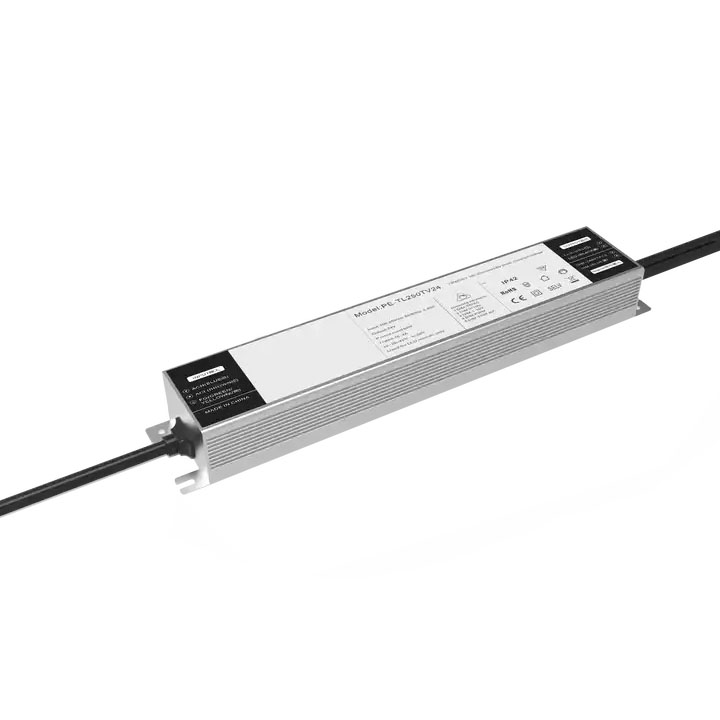

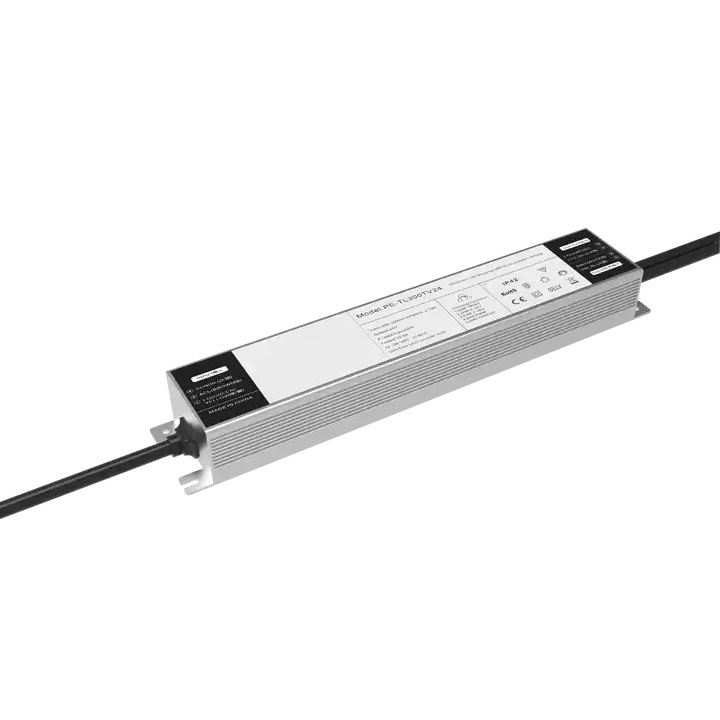

STARWELL minangka salah sawijining produsen, produser, lan eksportir 250W Konstan Voltage Triac Dimmable LED Driver ing China.
PE-TL250TV nganggo kontrol CPU lan ngrancang macem-macem mode kontrol. Dimming alon lan mateni. Bahan mentah sing digunakake yaiku merek baris pertama lan desain dimming ultra jero chip sing diimpor, cocog karo macem-macem sistem dimming cerdas lan dimmer ing pasar. Cangkang paduan aluminium, boros panas kanthi cepet, ndadekake keseimbangan termal komponen luwih stabil.
250W Tegangan Konstan Triac Dimmable LED Driver Fitur:
1. Tegangan konstan triac dimming driver kisaran dimming 0-100%
2. Ndhukung leading edge dimmer lan leading edge dimming system
3. Dukungan 0-10V / 1-10V / 10V PWM / 100k potensiometer peredupan
4. Ora ana dimming stroboscopic, sumber daya dimming super kompatibel
5. Jinis pangayoman: short circuit / liwat saiki / liwat voltase
6. Aluminium alloy Nihan, boros panas cepet
7. Desain unik, alon lan alon mati fungsi
8. Cocog kanggo lampu strip LED voltase pancet lan aplikasi liyane
9. Meet SELV safety ekstra kurang voltase standar
10. garansi 5 taun
11. Ukuran: 264.5*62*33mm
250W Tegangan Konstan Triac Dimmable LED Dhaptar Model Driver:
Triac & 0 / 1-10V 2 ing 1 voltase dimming pancet
Seri | Model | Input | daya | PF | Tegangan Output | Output Saiki |
PE702 20W |
PE702TV12 | AC 200V-250V | 20W | 0,6PF | 12V | 1670mA |
PE702TV24 | 24V | 830mA | ||||
PE-L80TV 80W |
PE-L80TV24 | AC 200V-250V | 80W | 0,6PF | 24V | 3.33A |
PE-TL60TV 60W |
PE-TL60TV24 | AC 200V-250V | 60W | 0,6PF | 24V | 2.5A |
PE-TL60TV12 | AC 200V-250V | 12V | 5A | |||
PE-TL100TV 100W |
PE-TL100TV24 | AC 200V-250V | 100W | 0,6PF | 24V | 4.2A |
PE-TL100TV12 | AC 200V-250V | 12V | 8.3A | |||
PE-TL150TV 150W |
PE-TL150TV24 | AC 200V-250V | 150W | 0,6PF | 24V | 6.25A |
PE-TL120TV12 | AC 200V-250V | 120W | 12V | 10A | ||
PE-TL250TV 250W |
PE-TL250TV24 | AC 200V-250V | 250W | 0,6PF | 24V | 10.5A |
PE-TL300TV 300W |
PE-TL300TV24 | AC 200V-250V | 300W | 0,6PF | 24V | 12.5A |
Aplikasi Driver LED Triac Tegangan Konstan 250W:
1. Strip lampu tegangan konstan, strip lampu keras
2. Dhukungan sistem dimming anjog
3. Villa, hotel dhuwur-mburi lan aplikasi liyane
4. kothak cahya Ultra lancip
250W Tegangan Konstan Triac Dimmable LED Driver Spesifikasi:
Model | PE-TL250TV24 | PE-TL300TV12 | |
OUTPUT | Tegangan Output | 24Vdc | 24Vdc |
Output Saiki | 10.42A Maks | 12.5A Maks | |
Tegangan Output Max | 24.3Vdc ± 0.25v | 24.3Vdc ± 0.25v | |
Daya Output | 250W Maks | 300W Maks | |
Tingkat Strobe | Ora kedhep | ||
Dimming Range | 0~100%, | ||
PWM Dimming Frekuensi | > 3600K | ||
INPUT | Dimming Antarmuka | Triac, 0-10V/1-10V/10V PWM/100KResistor DIM Sinyal kontrol arus <0.1mA | |
Range Tegangan Input | 200-250Vac 50/60Hz | ||
Faktor Daya | 0.6 | ||
Input Saiki | <2.79A | ||
Efisiensi (Tip.) | 92,6% | 91% | |
Arus Inrush (Tip.) | wiwitan kadhemen13.8A / 800us | ||
Anti Surge | L-N: 2 kV | ||
Arus bocor | <0,5mA/230Vac | ||
LINGKUNGAN | Suhu Kerja | ta: 45°C tc: 85°C | |
Kelembapan Kerja | 20 ~ 95% RH, non-kondensasi | ||
Suhu panyimpenan, Kelembapan | -40~80°C, 10~95%RH | ||
Kelas anti banyu | IP42 | ||
pangayoman | Over Load Protection | Mateni output nalika dirating power≥102%, otomatis pulih. | |
Proteksi sirkuit cendhak | Mateni kanthi otomatis yen ana short circuit, otomatis pulih. | ||
Non-beban Proteksi | output Tegangan Konstan. | ||
KESELAMATAN | Tahan Tegangan | I/P-O/P: 3750Vac | |
Ketahanan Isolasi | I/P-O/P: 100MΩ/500VDC/25°C/70%RH | ||
Kekebalan EMC | EN61000-4-2,3,4,5,6,8,11, EN61547 | ||
Strobe Test Standar | IEEE 1789 | ||
LAIN | ukuran | 265 (289) * 63 * 35mm (L × W × H) | |
Packing | kothak | ||
Bobot (G.W.) | 1060±10g | ||
NERANGKE | Sajrone nggunakake, mangga mbayar manungsa waé menyang kabel input lan output, lan aja mbalikke sambungan. Dilarang nyambungake antarmuka sinyal kanthi voltase sing luwih dhuwur tinimbang 15V, yen ora, sumber daya bakal rusak. Sajrone nggunakake sumber daya, nalika mbukak cedhak mbukak lengkap, suhu omah sumber daya rada luwih dhuwur. Amarga saka efisiensi boros panas dhuwur saka aluminium, suhu internal bisa dipesthekake Tambah urip layanan |
ukuran:
Wiring diagram:
