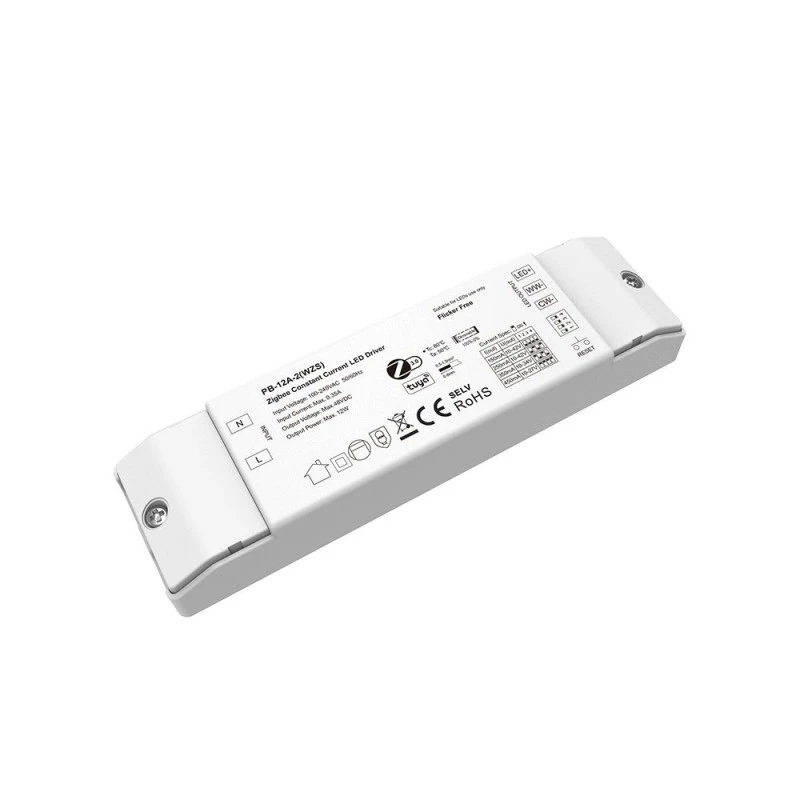

2CH CCT ZigBee 3.0 LED Driver Arus Konstan (150-450mA)
Kualitas Grosir 2CH CCT ZigBee 3.0 LED Driver Konstan Saiki (150-450mA) CH Output 10-42VDC 12W kang diprodhuksi dening STARWELL. We offer rega murah lan kualitas apik 2CH CCT ZigBee 3.0 LED Driver Konstan Saiki (150-450mA) / CH Output 10-42VDC 12W.
Kirim Pitakonan
STARWELL, produsen profesional ing China, nyedhiyakake 2CH CCT ZigBee 3.0 LED Driver Konstan Saiki. (150-450mA) Output CH 10-42VDC 12W, yaiku catu daya putih sing bisa disetel cerdas 12W dirancang kanggo sistem cahya njero ruangan cerdas modern. Iku ngirim dual-saluran output saiki pancet luwes saka 150mA kanggo 450mA saben saluran, kanthi kisaran output 10–42VDC sing fleksibel kanggo cocog karo macem-macem panel LED CCT, downlights lan sorotan.

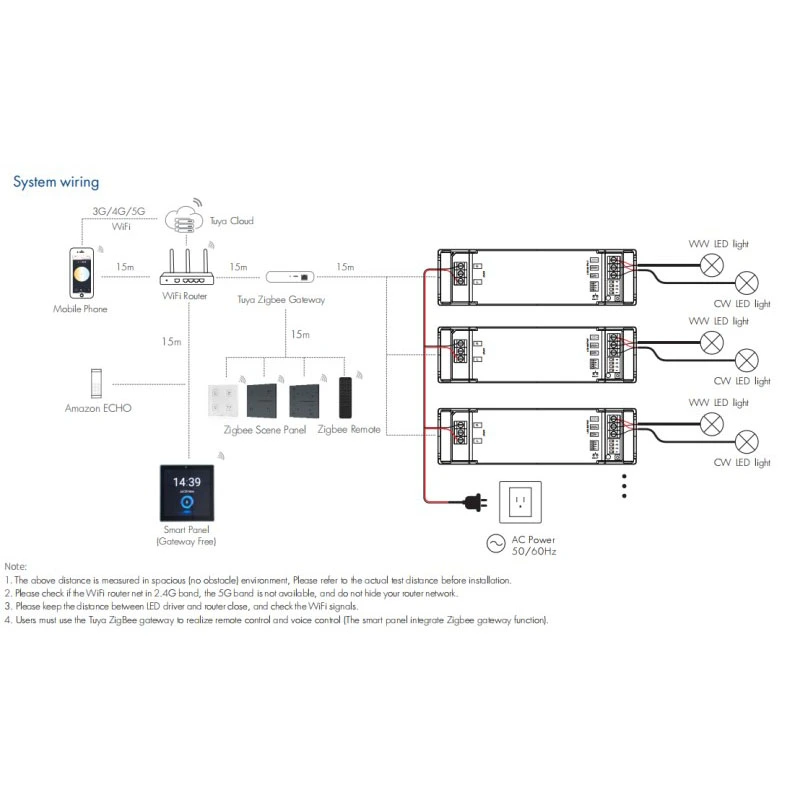

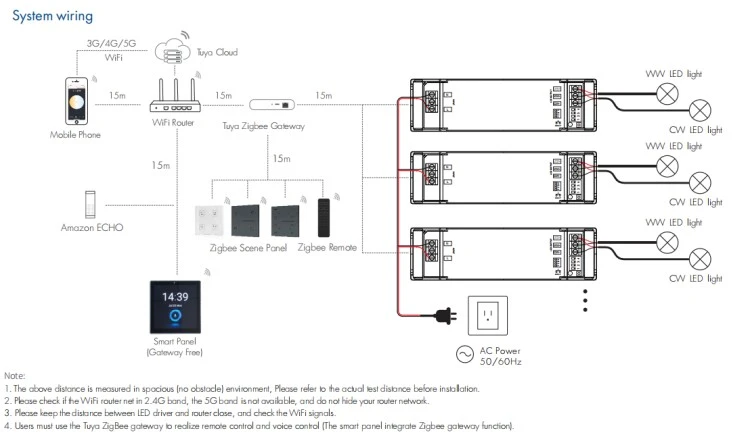

Dibangun karo teknologi ZigBee 3.0 certified, driver mbisakake jaringan bolong sing stabil, pasangan sing mulus karo ZigBee universal gateways, lan kompatibilitas lengkap karo platform pinter mainstream kalebu Tuya Smart, Philips Hue, Amazon Alexa lan Asisten Google kanggo APP & swara kontrol. Iku nyadari dimming padhange stepless lan suhu werna lengkap tuning saka putih anget dadi putih kelangan, nganggo dimming jero tanpa flicker nganti 0,1% kanggo katerangan sing ramah mripat.
Dilengkapi pangayoman safety lengkap marang short circuit, kakehan lan overheating, unit fitur efficiency dhuwur lan faktor daya banget kanggo ngurangi konsumsi daya long-term. Sawijining kompak diisolasi casing plastik pas karo struktur lampu sing sempit. Ndhukung Touchlink sambungan cepet, panyimpenan pemandangan lan wiwitan alus, driver iki becik kanggo pinter omah, kantor, hotel lan spasi toko, nawakake dipercaya, fleksibel lan solusi kontrol cahya pinter manungsa-sentris.
Fitur pangisi daya cepet:
1. Protokol ZigBee 3.0 standar, ndhukung jaringan bolong, kompatibel karo kontrol swara Tuya, Hue, Alexa & Google Home
2. Saluran CCT independen dobel kanggo panyesuaian cahya sing bisa disetel putih anget/dingin
3. Output arus konstan sing bisa diatur saben saluran: 150mA–450mA liwat switch dip
4. Wide kisaran tegangan output DC 10–42VDC, daya total maksimal nganti 12W
5. Ultra-mulus 0,1%–100% peredupan tanpa kerlip tanpa strobing
6. Multiple built-in protection: short circuit, overvoltage, overload & over temperature
7. Sambungan cepet pasangan tutul, memori pemandangan, fungsi wiwitan / soft off
8. Faktor daya dhuwur & efisiensi konversi dhuwur, desain hemat energi
9. Perumahan plastik terisolasi kompak, IP20 kanggo lampu panel njero ruangan, lampu mudhun & lampu sorot
10. Ndhukung penjadwalan remot, kontrol grup & sambungan cerdas kanggo lampu komersial & omah

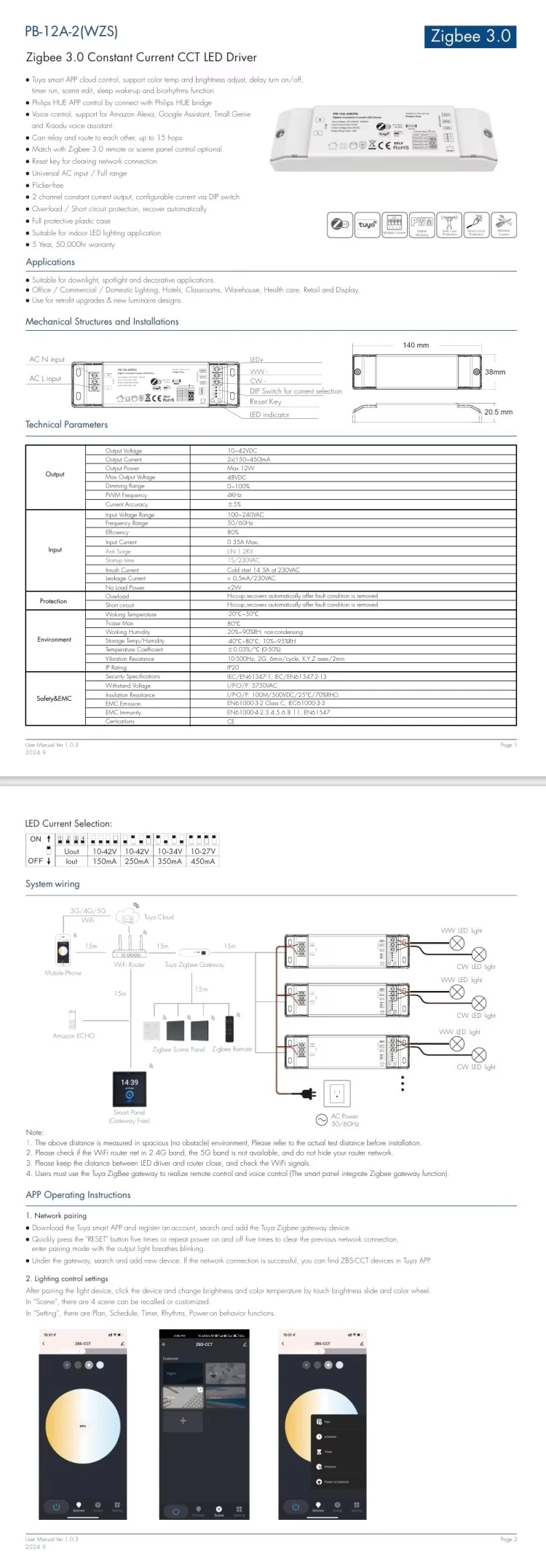

Parameter produk
|
|
|
Item |
|
|
|
|
|
Output |
Tegangan Output |
10 ~ 42VDC |
|
|
|
|
Output Saiki |
2× (150~450)mA |
|
|
|
|
Daya Output |
Maks. 12W |
|
|
|
|
Max Output Tegangan |
48VDC |
|
|
|
|
Dimming Range |
0~100% |
|
|
|
|
Frekuensi PWM |
4KHz |
|
|
|
|
saiki Akurasi |
± 5% |
|
|
|
Input (输入) |
Tegangan Input Range |
100 ~ 240VAC |
|
|
|
|
Frekuensi Range |
50/60Hz |
|
|
|
|
Efisiensi |
80% |
|
|
|
|
Input Saiki |
0.35A maks. |
|
|
|
|
Anti Surge |
L-N: 1.2KV |
|
|
|
|
Wektu wiwitan |
1S/230VAC |
|
|
|
|
Arus Inrush |
wiwitan kadhemen 14.5A ing 230VAC |
|
|
|
|
Kebocoran saiki |
< 0.5mA/230VAC |
|
|
|
|
Ora Daya Beban |
<2W |
|
|
|
Proteksi (保护) |
Kakehan beban |
Hiccup, pulih kanthi otomatis sawise kondisi fault dibusak |
|
|
|
|
Sirkuit cendhak |
Hiccup, pulih kanthi otomatis sawise kondisi fault dibusak |
|
|
|
Lingkungan (Lingkungan) |
nyambut gawe Suhu |
-20 ℃ ~ 50 ℃ |
|
|
|
|
Kasus Max |
80 ℃ |
|
|
|
|
nyambut gawe Kelembapan |
20% ~ 90% RH, non-kondensasi |
|
|
|
|
Panyimpenan Suhu / Kelembapan |
-40 ℃ ~ 80 ℃, 10% ~ 95% RH |
|
|
|
|
Suhu Koefisien |
± 0,03% / ℃ | 0-50%| |
|
|
|
|
Getaran Resistance |
10-500Hz, 2G, 6menit/siklus, sumbu X,Y,Z/2menit |
|
|
|
|
Rating IP |
IP20 |
|
|
|
Safety & EMC |
Keamanan Spesifikasi |
IEC/EN61347-1, IEC/EN61347-2-13 |
|
|
|
|
Tahan Tegangan |
I/P-O/P: 3750VAC |
|
|
|
|
Isolasi Resistance |
I/P-O/P: 100M/500VDC/25℃/70%RHΩ |
|
|
|
|
EMC Emisi |
EN61000-3-2 Kelas C, IEC61000-3-3 |
|
|
|
|
Kekebalan EMC |
EN61000-4-2.3.4.5.6.8.11, EN61547 |
|
|
|
|
Sertifikasi |
CE |
FAQ
Q1. Apa aku bisa duwe pesenan sampel kanggo dites dhisik?
A1: Ya, kita nampa pesenan sampel kanggo nguji lan mriksa kualitas. Sampel campuran yaiku ditrima.
Q2: Apa MOQ sampeyan?
A2: MOQ Low, 1 pc kanggo mriksa sampel kasedhiya. Q3. Apa sampeyan nampa proyek OEM & ODM? A3: Nggih. Kita duwe insinyur profesional lan bakat ing lapangan iki. Iku ora masalah kanggo kita!
Q4: Suwene garansi?
Iku 2 taun. Sajrone periode iki, yen sampeyan nemoni masalah, pls aran gratis kanggo hubungi kita. Tim sales kita, QC lan departemen R&D bakal gawe kabeh gaweyan kanggo nyukupi panjalukmu.
Q5: Aku bisa njaluk produk karo LOGO dhewe?
A5: Mesthi, sampeyan bisa. Mangga ngandhani kita resmi sadurunge produksi lan konfirmasi desain pisanan adhedhasar sampel kita.
Q6: Apa wektu timbal normal?
A6: 3-7 dina kerja kanggo pesenan sampel, 15-30 dina kerja kanggo pesenan massal.
Q7: Apa mode pengiriman sing bisa kita pilih?
A7: Kurir ekspres, angkutan udara, angkutan laut. Q8: Apa pembayaran sampeyan nampa? A8: TT, PayPal, L/C, Western Union, utawa liwat Alibaba Trade Assurance, etc.
