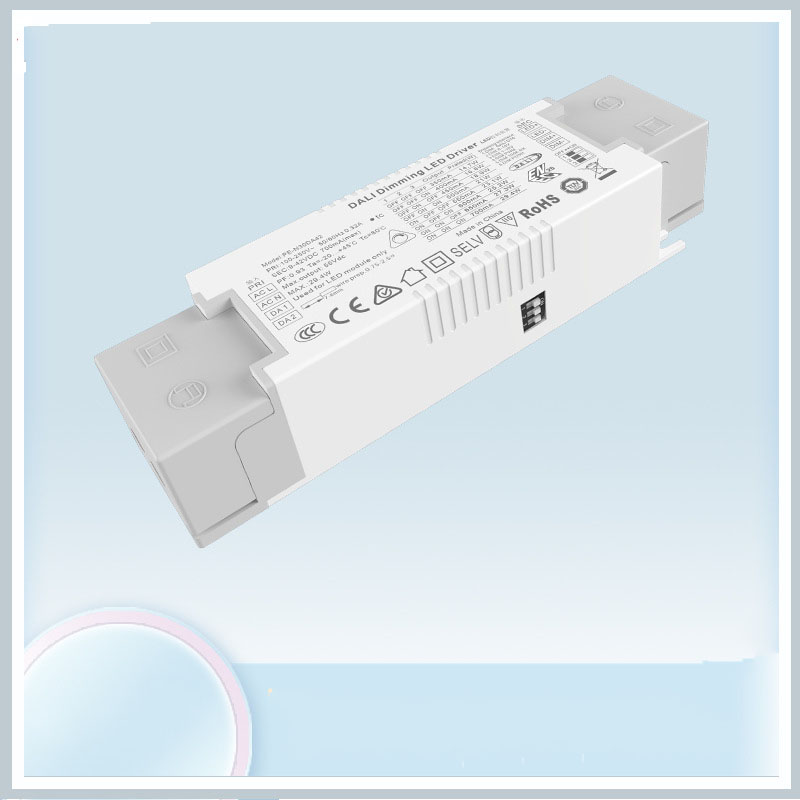

30W Konstan Saiki DALI Dimmable LED Driver
  • 30W Konstan Saiki DALI Dimmable LED Driver30W Konstan Saiki DALI Dimmable LED Driver
  • 30W Konstan Saiki DALI Dimmable LED Driver30W Konstan Saiki DALI Dimmable LED Driver

30W Konstan Saiki DALI Dimmable LED Driver

STARWELL minangka salah sawijining pimpinan profesional China 30W Konstan DALI Dimmable LED Driver Produsen kanthi kualitas lan rega sing cukup. Sugeng rawuh kanggo hubungi kita.
DALI (Digital Addressable Lighting Interface) minangka Standar Internasional kanggo kontrol ballast elektronik, trafo, LED, lampu darurat lan tandha metu kanthi gampang ngatur sistem kontrol lampu digital.

Kirim Pitakonan

Salah sawijining pabrikan Cina 30W DALI Dimmable LED Driver Konstan Saiki, nawakake kualitas apik kanthi rega sing kompetitif, yaiku STARWELL. Bebas bae kanggo njaluk sesambungan.

DALI Dimming LED Driver minangka salah sawijining driver LED dimming sing terus-terusan dikembangake dening perusahaanku kanthi faktor daya dhuwur, efisiensi dhuwur, presisi dhuwur, panggunaan chip kontrol switch mundhut stabil sing stabil lan komponen kinerja dhuwur ndadekake swara sing kurang, hemat energi, perlindungan lingkungan, umur dawa lan karakteristik liyane.

PE-N30DA wis DALI / Push / 0-10V / 1-10V / PWM / R DIM enem cara dimming, nggunakake ngalih DIP kanggo ngganti fungsi dimming, ora interfering karo saben liyane, ora ana ing wektu sing padha.

Antarmuka dimming:

1. DALI dimming, nggunakake antarmuka sinyal DALI standar. bisa cocog karo kabeh sistem kontrol DALI ing panandha.

2.0-10V dimming, nggunakake standar 0-10V/100K resistance/10V PWM dimming.


Fitur Driver LED DALI Dimmable 30W Konstan Saiki:

1. Integrated DALI/Push/0-10V/1-10V/PWM/R DIM standar dimming antarmuka

2. Kanthi fungsi PUSH kanggo mujudake dimming PUSH

3. Output kontrol digital, flicker free

4. Input AC umum internasional 100-250V

5. Jinis pangayoman: short circuit / liwat saiki / liwat voltase

6. Angin dingin alami

7. Terminal gedhe dikunci kanthi meneng

8. Instalasi ekonomi lan trep

9. Selaras karo standar safety peralatan cahya donya

10. Proteksi kelas II

11. garansi 5 taun

12. TUV CE SAA ENEC sertifikat

13. Ukuran: 147.5*43*30mm


Daftar Model Driver LED DALI Dimmable 30W Konstan Saiki:

DALI arus konstan dimming

Seri Dimming Model Input daya PF Tegangan Output Output Saiki
PE-N14DA
12-14.7W		 DALI/Push/0-10V/1-10V/100K Resistor/PWM PE-N14DA24 AC 100-250V 12w 0,88-0,96PF THD<10% 9-24V 200/250/280/300/350/400/450/500mA
PE-N14DA42 14.7W 9-42V 150/180/200/250/280/300/320/350mA
PE-N20DA
12-20W		 DALI/Push/0-10V/1-10V/100K Resistor/PWM PE-N20DA24 AC 100-250V 19.2W 0,88-0,96PF THD<10% 9-24V 450/500/550/600/650/700/750/800mA
PE-N20DA42 21W 9-42V 200/250/280/300/350/400/450/500mA
PE-N30DA
20-30W		 DALI/Push/0-10V/1-10V/100K Resistor/PWM PE-N30DA42 AC 100-250V 29.4W 0,88-0,96PF THD<10% 9-42V 350/400/450/500/550/600/650/700mA
PE-N45DA
30-45W		 DALI / Push / 0-10V / 1-10V / 100K Resistor / PWM PE-N45DA42 AC 100-250V 44.1W 0,88-0,96PF THD<10% 9-42V 700/750/800/850/900/950/1000/1050mA
PE-N60DA
30-60W		 DALI/Push/0-10V/1-10V/100K Resistor/PWM PE-N60DA42 AC 200-250 V 58,8W 0,88-0,96PF THD<10% 9-42V 700/800/900/1000/1100/1200/
1300/1400mA



Aplikasi Driver LED DALI Dimmable 30W Konstan Saiki:

DALI (Digital Addressable Lighting Interface) driver LED digunakake ing macem-macem skenario. Ing ngisor iki sawetara aplikasi umum:

1. Lampu bangunan komersial

2. Lembaga Pendidikan

3. Fasilitas kesehatan

4. Industri Perhotelan

5. Toko eceran

6. Cahya arsitektur

7. cahya njaba


Spesifikasi Driver LED DALI Konstan Arus 30W:


Model PE-N30DA42 PE-N45DA42
OUTPUT Tegangan Output 9-42Vdc 9-42Vdc
Tegangan Output Max 42vdc 42vdc
Tegangan Output Non-beban 55vdc 55vdc
Output Saiki 550/600/650/700mA 900/950/1000/1050mA
Daya Output 4.95W~29.4W 8.1W~44.1W
Tingkat Strobe Ora Flicker
Dimming Range 0 ~ 100%, LED miwiti ing 0.03% bisa.
PWM Dimming Frekuensi > 3600Hz
Akurasi Saiki ± 3%
Ripple & Noise ≤2V (Ora dimming)
INPUT Dimming Antarmuka DALI (IEC62386), Push /0-10V/1-10V/PWM/100KR DIM Sinyal kontrol arus <0.1mA
Range Tegangan Input 100-250Vac
Frekuensi 50/60Hz
Input Saiki <0.37A <0.56A
Faktor Daya PF> 0,95/100Vac, ing beban lengkap PF> 0,95/100Vac, ing beban lengkap
THD 230Vac@THD ≤15% (beban kebak)
Efisiensi (tys.)
 88% mbukak lengkap 88% mbukak lengkap
Arus Inrush (Tip.) wiwitan kadhemen 3.7A@230Vac wiwitan kadhemen 5.6A@230Vac
Anti Surge L-N: 2 kV
Arus bocor <0,25mA/230Vac
LINGKUNGAN Suhu Kerja ta: 45°C tc: 80°C
Kelembapan Kerja 20 ~ 95% RH, non-kondensasi
Suhu panyimpenan, Kelembapan -40~80°C, 10~95%RH
Temp. Koefisien
 ± 0,03%/°C(0-50) °C
Getaran 10~500Hz, 2G 12min./1siklus, periode 72min. saben sumbu X, Y, Z.
pangayoman Proteksi overheat Intelligently nyetel utawa mateni saiki output yen suhu PCB ≥110 ° C, otomatis pulih.
Over Load Protection Mateni output nalika dirating power≥102%, otomatis pulih.
Proteksi sirkuit cendhak Mateni kanthi otomatis yen ana short circuit, otomatis pulih.
Non-beban Proteksi output Tegangan Konstan.
KESELAMATAN & EMC Tahan Tegangan I/P-O/P: 3750Vac
Ketahanan Isolasi I/P-O/P: 100MΩ/500VDC/25°C/70%RH
Standar Keamanan IEC/EN61347-1, IEC/EN61347-2-13
EMC Emisi EN55015, EN61000-3-2 Kelas C, IEC61000-3-3
Kekebalan EMC EN61000-4-2,3,4,5,6,8,11, EN61547
Strobe Test Standar IEEE 1789
LAIN ukuran 147.5(117)×43×30mm(L×W×H)
Packing tas PE
Bobot (G.W.) 187g/245g±10g

ukuran:



Label:

Pilihan LED saiki:

DIP switch kanggo 8 pilihan cepet arus pilihan (ndeleng tabel ing ngisor iki).

Sawise setelan saiki kanthi ngalih DIP, mateni banjur uripake supaya arus anyar sing efektif.

contone. LED 3.2V/pcs: 9-24V bisa nguwasani 3-7pcs LED ing seri, 9-42V bisa nguwasani 3-12pcs LED, jumlah maksimum LED ing seri bakal tundhuk voltase LED sing nyata.


DALI dim wiring diagram:

Diagram pengkabelan dim 0-10V:

PUSH dim wiring diagram:

Kontrol on/off: Pencet singkat.

Stepless dimming: Tekan dawa. Kanthi saben penet dawa liyane, tingkat cahya menyang arah ngelawan.

Memori dimming: Padhang bakal padha karo sing disetel sadurunge nalika dipateni lan diuripake maneh.


Kondisi abnormal lan cara perawatan sing cocog:

Digital Addressable Lighting Interface (DALI)

Unit budak DALI bakal ngirim data mung panjaluk unit master, yaiku, nganggo mode panjawab printah

Ana 64 unit budak paling akeh ing jaringan DALI sing padha, saben unit duwe alamat sing kapisah (alamat singkat), unit salve uga bisa ditugasake menyang klompok tartamtu, lan unit budak bisa dadi klompok sing beda, unit salve bisa ana. munggah 16 kelompok ing wektu sing padha, saben unit bisa nyetel 16 skenario.


Fitur utama protokol DALI

1) Komunikasi serial asinkron.

2) 1200 baud rate, nggunakake format encoding Manchester.

3) Sinyal diferensial loro dumunung.

4) Tingkat dhuwur nalika voltase diferensial luwih gedhe tinimbang 9.5V.

5) Tingkat kurang nalika voltase diferensial kurang saka 6.5V.

6) Unit master ngontrol proses komunikasi.

7) Siji bis DALI bisa nyambung karo 64 unit budak.

8) Saben unit budak bisa ditangani kanthi individu.


Spesifikasi Listrik DALI

Ing negara nganggur, saka cara unit mesin kanggo ngontrol bus:

1) Daya Output dhuwur ing wektu biasa, ora ngganggu sinyal ditahan.

2) Output listrik kurang ing wektu biasa, langsung menyang DALI bis short circuit kanggo saben liyane.

3)DALI bus maksimum saiki 250mA

4) Ora komunikasi loro arah ing wektu sing padha.

5) Kabel transmisi nganti 300 meter, utawa gulung tekanan ora luwih saka 2v
