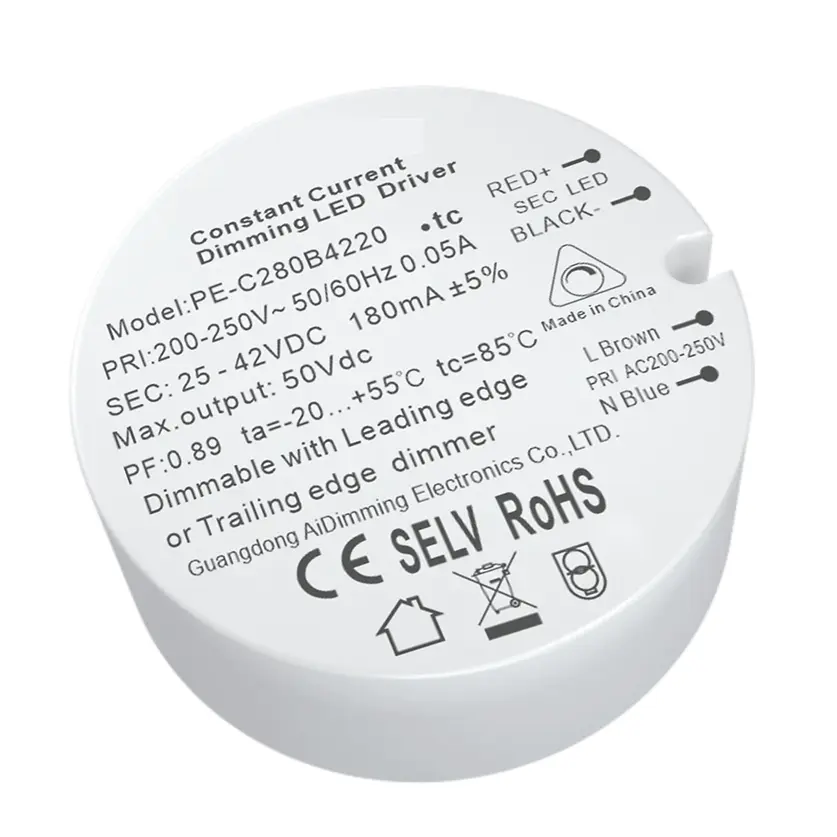

8.4W Triac Dimmable LED Driver Konstan Saiki
  • 8.4W Triac Dimmable LED Driver Konstan Saiki8.4W Triac Dimmable LED Driver Konstan Saiki

8.4W Triac Dimmable LED Driver Konstan Saiki

PE-C280 minangka salah sawijining Driver LED Triac Dimmable 8.4W Konstan sing dikembangake dening China maufacturer Starwell kanthi faktor daya dhuwur, efisiensi dhuwur, presisi dhuwur, panggunaan chip kontrol saklar sing kurang stabil sing stabil lan komponen kinerja sing dhuwur ndadekake swara sing sithik, umur dawa lan karakteristik liyane.

Kirim Pitakonan

Minangka pabrikan profesional, Starwell kepengin nyedhiyakake Driver LED Triac Dimmable 8.4W Konstan Saiki, sing cocog kanggo dimmer RPC MOSFET lan dimmer FPC TRAIC.


Spesifikasi

Model

PE-C280B2435

PE-C280B4220

PE-C280B0670

PE-C280B1270

PE-C280B2430

OUTPUT

Tegangan Output

12-24Vdc

25-42Vdc

2.5-6Vdc

6-12Vdc

12-24Vdc

Tegangan Output Max

24Vdc

42vdc

6vdc

12Vdc

24Vdc

Tegangan Output Non-beban

27 Vdc

43vdc

8vdc

15Vdc

27 Vdc

Output Saiki

350mA

200mA

700mA

700mA

300mA

Daya Output

4.2W~8.4W

5W~8.4W

1.75W~4.2W

4.2W~8.4W

3.6W~7.2W

Tingkat Strobe

Mudhun  kerlip (8%)

Dimming Range

2~100%,

PWM Dimming Frekuensi



Akurasi Saiki

± 5%

Ripple & Noise

= 500mv p-p

INPUT

Dimming Antarmuka

Triac Leading edge/Tralling edge

Range Tegangan Input

200-250Vac

Frekuensi

50/60Hz

Input Saiki

<0.08A

<0.08A

<0.08A

<0.08A

<0.08A

Faktor Daya

PF> 0,9 (ing beban kebak)

PF>0.9 (ing beban kebak)

PF>0,88 (ing beban kebak)

PF> 0,88 (ing  beban kebak)

PF> 0,88 (kanthi beban penuh)

THD

230Vac@THD      <20% (kanthi  beban kebak)

Efisiensi (Tip.)

77%

79%

77%

77%

77%

Arus Inrush (Tip.)

wiwitan kadhemen0.8A

wiwitan kadhemen0.8A

wiwitan kadhemen1.54A

wiwitan kadhemen0.8A

wiwitan kadhemen0.8A

Anti Surge

L-N: 1,5 kV

Arus bocor

<0,25mA/230Vac

LINGKUNGAN

Suhu Kerja

tc: 55°C tc: 85°C

Kelembapan Kerja

20 ~ 95% RH, non-kondensasi

Suhu panyimpenan, Kelembapan

-40 ~ 80 ° C, 10 ~ 95% RH

Temp. Koefisien

± 0,03%/°C(0-50)°C

Getaran

10~500Hz, 2G 12min./1siklus, periode 72min. saben sumbu X, Y, Z.

pangayoman

Proteksi overheat

Intelligently nyetel utawa mateni saiki output yen suhu PCB ≥110 ° C, otomatis pulih.

Over Load Protection

Mateni output nalika dirating power≥102%, otomatis pulih.

Proteksi sirkuit cendhak

Mateni kanthi otomatis yen ana short circuit, otomatis pulih.

Non-beban Proteksi

Mateni output yen ora ana beban, otomatis pulih nalika mbukak bali menyang normal.

KESELAMATAN & EMC

Tahan Tegangan

I/P-O/P: 3750Vac

Ketahanan Isolasi

I/P-O/P: 100MΩ/500VDC/25°C/70%RH

Standar Keamanan

IEC/EN61347-1, IEC/EN61347-2-13

EMC Emisi

EN55015, EN61000-3-2 Kelas C, IEC61000-3-3

Kekebalan EMC

EN61000-4-2,3,4,5,6,8,11,  EN61547

Strobe Test Standar

IEEE 1789

LAIN

ukuran

43,2 × 0,5 mm (D × H)

Packing

tas PE

Bobot (G.W.)

42g±5g


Fatures:

● LED phase-cut dimming driver, dimming range 2-100%

● Cocog kanggo RPC MOSFET dimmer lan FPC TRAIC dimmer

● PFC aktif

● Proteksi: short circuit / liwat voltase / liwat saiki

● Teknologi konduksi panas silika gel, angin dingin alami

● Volume Ultra cilik

● Cocog kanggo lampu ngarep LED lan cahya komersial

● Aman ora ngemot piranti pangayoman

● Instalasi ekonomi lan trep

● cocog karo standar safety peralatan cahya donya

● Proteksi kelas II

● Garansi telung taun

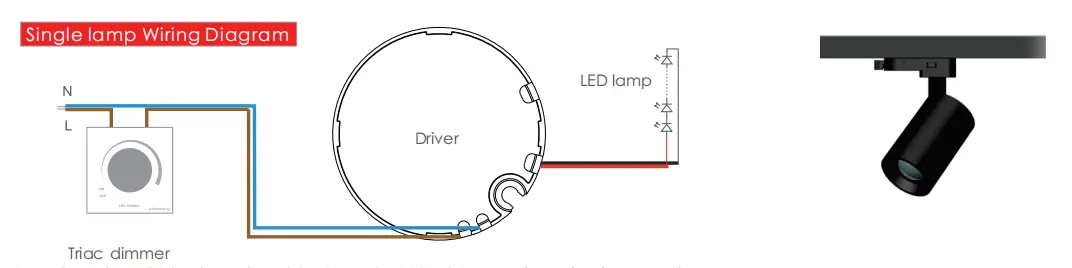

Wiring Diagram:

Wiring:

Kawat output: 20AWG kabel PVC abang lan ireng, dawa 200-230mm, syarat stripping kabel: 5-7mm

Kawat input: 20AW Coklat Biru VDE kawat terisolasi ganda, dawa 150-160mm, syarat pengupasan kabel: 5-7mm



Panganggone panuntun dhumateng:

1. Mangga digatekake bedane antarane input lan output, sambungake kanthi bener, banjur uripake

2. Mangga nyambungake pisanan mbukak saka output DC, mbukak sumber daya afer mriksa; ing mode current pancet, yen daya ing sirkuit atopen, please tum mati sumber daya lan ora bisa nyambung LED nganti energi electic disimpen dening release output, utawa bisa ngrusak LED;

3. Jinis sumber daya iki mung winates kanggo nggunakake lampu LED lan lanterns, sawetara votage input punika AC200-250v, katun insulasi panas lan item liyane sing ngalangi boros panas prodhuk, kang conforms kanggo prodhuk ing voltase output cified Spesialisasi, sawetara saiki, lingkungan nggunakake suhu -20-45, lan ora nutupi lingkungan prodhuk iki suracees. seneng telung taun garansi gratis.



Kondisi abnormal lan cara perawatan sing cocog:

1. Lampu LED ora padhang sawise driver dimming disambungake ing wektu pisanan, mangga mateni input AC lan mriksa minangka nderek:.

a) Apa utawa ora DC output kontak ala:

b) Apa polaritas output DC dibalik, utawa papan LED dilas anti;

c) Apa input AC salah kontak: tes sawise ngilangi kegagalan kasebut.

2. Piranti nduweni sambungan sing apik, lampu LED, nanging ficker LED, mangga mateni input AC, banjur priksa output DC.

a) overload.under load.

b) Apa paramèter lan paramèter aktual cocog utawa ora.

3. Mangga cepet komunikasi karo kita yen ana pitakonan ing nggunakake, kita bakal nyoba kita paling apik kanggo ngatasi masalah karo sampeyan.
