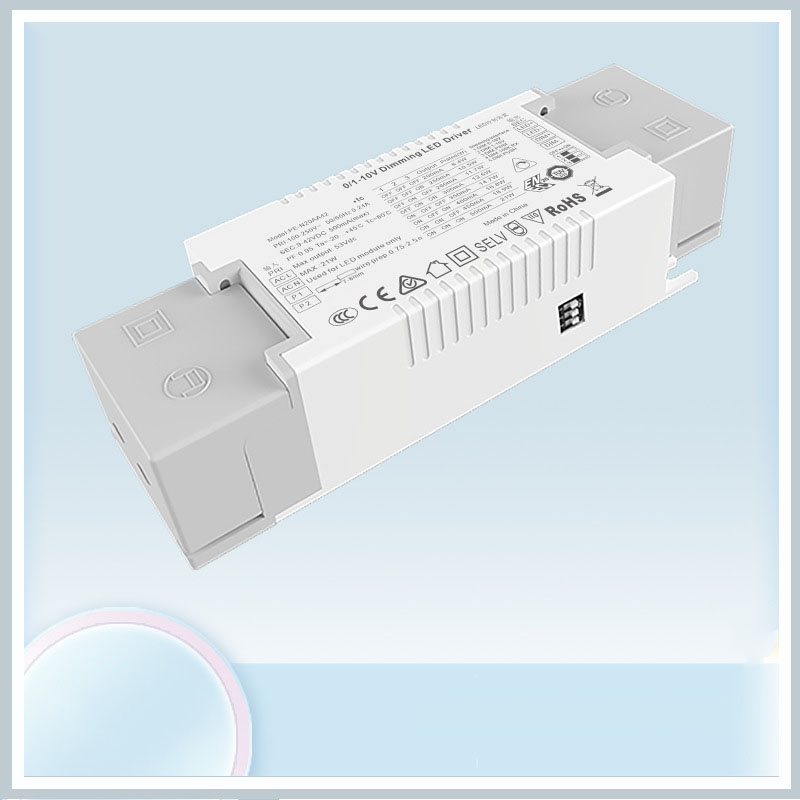

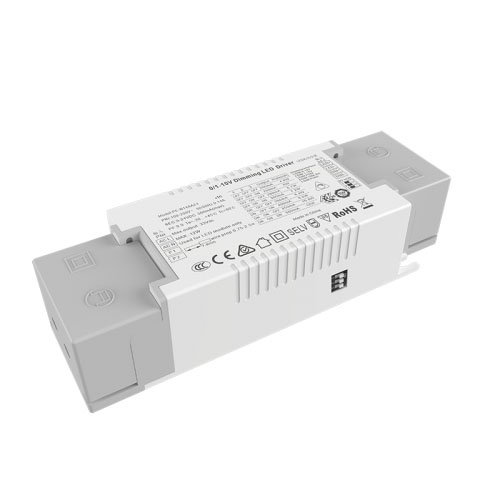

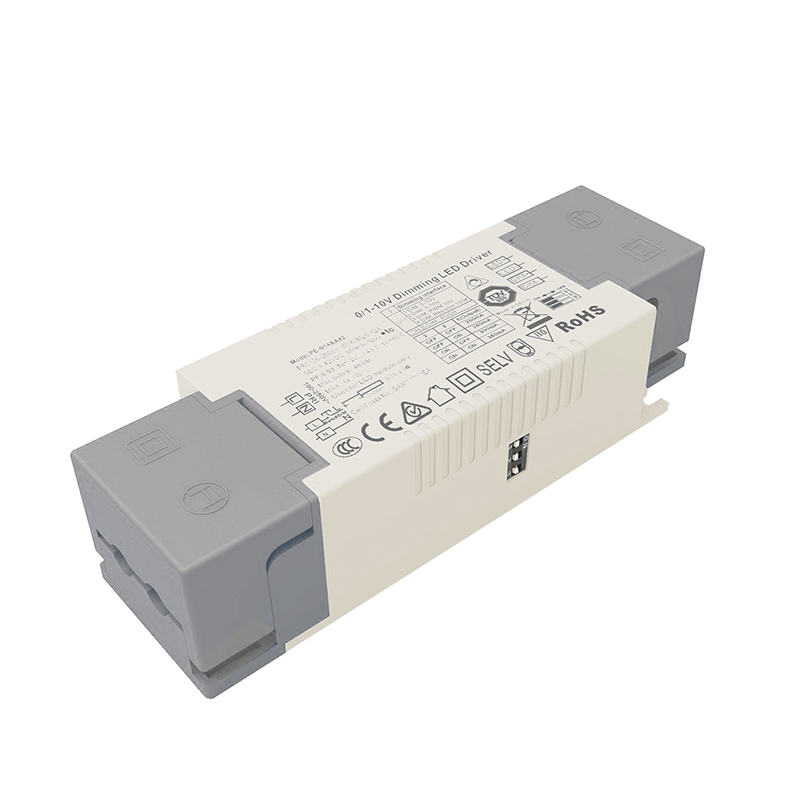

STARWELL minangka pabrikan lan pemasok Cina sing duwe pengalaman pirang-pirang taun khusus ing produksi Driver LED 20W Konstan Saiki 0-10V Dimmable. Muga-muga bisa nggawe hubungan komersial karo sampeyan.
PE-N20AA digunakake kanggo ngontrol kurva dimming lan kontrol frekuensi campuran kanggo entuk padhange pemahaman sudut visual. Bahan mentahan sing digunakake yaiku merek baris pertama lan chip sing diimpor dirancang kanggo peredupan ultra jero, cocog karo macem-macem sistem peredupan cerdas ing pasar, kanthi akurat ngontrol padhange, dilengkapi kanthi wiwitan alon lan desain ukuran cilik.
20W Konstan Saiki 0-10V Dimmable LED Driver Fitur:
1. nggabungake sawetara sinyal dimming antarmuka
2. output kontrol digital tanpa stroboskopik
3. Input AC kisaran 100-250v
4. cooling online alam, Kelembapan-bukti, panas nindakake silikon proses boros panas
5. desain dimming jero
6. sawetara fungsi pangayoman
7. desain crimping, trep lan cepet
8. Sertifikat ENEC TUV CE SAA C-TICK
9. 127,5 * 43 * 30mm
20W Arus Konstan 0-10V Dimmable LED Dhaptar Model Driver:
0/1-10V dimming arus konstan
Seri | Dimming | Model | Input | daya | PF | Tegangan output | Output saiki |
PE-N14AA 3-14.7W |
0-10V 1-10V PWM 10 V 100K Resistor PUSH |
PE-N14AA24 | AC 100-250V | 12W | 0,88-0,96PF THD<10% | 9-24V | 200/250/280/300/350/400/450/500mA |
PE-N14AA42 | 14.7W | 9-42V | 150/180/200/250/280/300/320/350mA | ||||
PE-N20AA 12-20W |
0-10V 1-10V PWM 10 V 100K Resistor PUSH |
PE-N20AA24 | AC 100-250V | 19.2W | 0,88-0,96PF THD<10% | 9-24V | 450/500/550/600/650/700/750/800mA |
PE-N20AA42 | 21W | 9-42V | 200/250/280/300/350/400/450/500mA |
20W Konstan Saiki 0-10V Dimmable LED Driver Aplikasi:
1. Led sumber cahya monochrome
2. Villa cerdas cahya
3.sistem cahya cerdas nirkabel bisa diakses
4. cahya museum
5. cahya komersial dhuwur mburi
20W Arus Konstan 0-10V Dimmable LED Driver Spesifikasi:
Model | PE-N14AA42 | PE-N14AA24 | PE-N20AA42 | PE-N20AA24 | |
OUTPUT | Tegangan Output | 9-42Vdc | 9-24Vdc | 9-42Vdc | 9-24Vdc |
Tegangan Output Max | 42vdc | 24Vdc | 42vdc | 24Vdc | |
Tegangan Output Non-beban | 53vdc | 33Vdc | 53vdc | 33Vdc | |
Output Saiki | 150/180/200/250 /280/300/320/350mA |
200/250/280/300 /350/400/450/500mA |
200/250/280/300 /350/400/450/500mA |
450/500/550/600 /650/700/750/800mA |
|
Daya Output | 2W~14.7W | 2W~12W | 2W~21W | 4W~19.2W | |
Tingkat Strobe | Ora Flicker | ||||
Dimming Range | 0 ~ 100%, LED wiwit ing 0.3% bisa. | ||||
PWM Dimming Frekuensi | > 3600Hz | ||||
Akurasi Saiki | ± 5% | ||||
Mode daya mudhun | Ora ana sinyal output padhange maksimum | ||||
INPUT | Dimming Antarmuka | 0-10V 1-10V sinyal antarmuka saiki <2ma / PUSH(P1 P2) | |||
Range Tegangan Input | 100-250Vac | ||||
Frekuensi | 50/60Hz | ||||
Input Saiki | <0.14A ac230v | <0.23A ac230v | |||
Faktor Daya | PF> 0.95/230V ac (beban penuh) | PF> 0.96/230V ac (beban penuh) | |||
THD | 230Vac@THD <10% (kanthi beban penuh) | ||||
Efisiensi (Tip.) | 82% | 84% | |||
Arus Inrush (Tip.) | wiwitan kadhemen30A@230Vac | ||||
Anti Surge | L-N: 1,5 kV | ||||
Arus bocor | <0,25mA/230Vac | ||||
LINGKUNGAN | Suhu Kerja | ta: 45°C tc: 80°C | |||
Kelembapan Kerja | 20 ~ 95% RH, non-kondensasi | ||||
Suhu panyimpenan, Kelembapan | -40~80°C, 10~95%RH | ||||
Koefisien suhu | ± 0,03%/°C(0-50)°C | ||||
Getaran | 10~500Hz, 2G 12min./1siklus, periode 72min. saben sumbu X, Y, Z. | ||||
pangayoman | Proteksi overheat | Intelligently nyetel utawa mateni saiki output yen suhu PCB ≥110 ° C, otomatis pulih. | |||
Over Load Protection | Mateni output nalika dirating power≥102%, otomatis pulih. | ||||
Proteksi sirkuit cendhak | Mateni kanthi otomatis yen ana short circuit, otomatis pulih. | ||||
Non-beban Proteksi | output Tegangan Konstan. | ||||
KESELAMATAN & EMC |
Tahan Tegangan | I/P-O/P: 3750Vac | |||
Ketahanan Isolasi | I/P-O/P: 100MΩ/500VDC/25°C/70%RH | ||||
Standar Keamanan | IEC/EN61347-1, IEC/EN61347-2-13 | ||||
EMC Emisi | EN55015, EN61000-3-2 Kelas C, IEC61000-3-3 | ||||
Kekebalan EMC | EN61000-4-2,3,4,5,6,8,11, EN61547 | ||||
Strobe Test Standar | IEEE 1789 | ||||
LAIN | ukuran | 127.5(97)×43×30mm(L×W×H) | |||
Packing | kothak | ||||
Bobot (G.W.) | 192g±10g |
ukuran:
Pilihan LED Arus:
0-10V dimming diagram:
PUSH Dimming dagram:
Panggunaan pandhuan:
Yen ora ditemtokake, kabeh spesifikasi lan paramèter diukur ing input 230VAC, beban sing dirating lan Suhu Sekitar 25 ℃
Prodhuk iki nduweni tutup garis penet ing input, kanthi clamping ngunci dhewe, bisa dibukak nganggo obeng, banjur sampeyan bakal weruh terminal input disambungake karo garis AC L lan jeruk null N, Terminal output nyambungake a miturut label produk, sok dong mirsani kutub positif lan negatif.
1: Mangga mbayar manungsa waé kanggo mbedakake antarane input lan metu sijine, nyambung bener, banjur daya ing
2: mangga sambungake dhisik beban output DC, bukak driver sawise mriksa; ing mode saiki pancet, yen daya ing sirkuit mbukak, please mateni driver lan ora bisa nyambung LED nganti energi listrik disimpen dening release output, utawa bisa ngrusak LED;
3. jinis driver iki mung diwatesi kanggo nggunakake lampu LED, sawetara voltase input AC100-250V, katun insulasi panas lan item liyane sing ngalangi boros panas prodhuk, kang conforms kanggo produk ing tartamtu. voltase output, sawetara saiki, suhu lingkungan nggunakake -20-45 derajat, lan lumahing ora bisa nutupi kondisi lingkungan, prodhuk iki seneng 5 taun babar pisan free.
1.lampu LED ora padhang sawise driver dimming disambungake ing pisanan, please mateni input AC lan mriksa minangka nderek:
1) apa utawa ora DC output kontak ala;
2) apa DC polaritas output kuwalik, utawa Papan LED gandheng anti;
3) apa input AC kontak ala, test sawise ngilangi gagal iki;
2. piranti wis sambungan apik, lampu LED, nanging kelip-kelip LED, please mateni input AC lan mriksa minangka nderek:
1).apa paramèter lan paramèter nyata cocog utawa ora.
2) .please pas wektune komunikasi karo kita yen sampeyan duwe pitakonan ing nggunakake, kita bakal nyoba kita paling apik kanggo ngatasi masalah karo sampeyan.
Bedane antarane 0-10V lan 1-10V:
1. Nalika dimmer 0 / 10V disetel menyang 10V maksimal, arus output bakal tekan 100% saka output daya, lan padhange bakal tekan 100%. Nalika dimmer 0-10V disetel menyang 0V, arus bakal dadi minimal, lan lampu bakal dipateni; Nalika 1-10V dimming diatur kanggo 1V, saiki minimal
lan lampu mati.
2. Bedane antarane 0-10V lan 1-10V dimming: beda wiwitan lan nutup voltase, 0-10V ing 0.7V, (ing min padhange) 1-10V ing 1.2V (ing min padhange).
3.Digital dimming driver 0-10V lan 1-10V dimming identifikasi otomatis loro mode dimming.
4. Sirkuit sinyal sing padha ngontrol cahya lan peteng ing wektu sing padha.
5.Dimmer (sistem dimming) dipérang dadi 0-10V lan 1-10V dimming sinyal.
Kompatibilitas 6.Dimming ana hubungane karo jarak kontrol garis sinyal lan jumlah sumber daya kontrol. Yen nomer gedhe banget utawa garis sinyal dawa banget, masalah kayata ora bisa diatur mudhun lan ora bisa diatur mati bakal kelakon.
Cakupan garansi produk:
1. antarmuka kontrol sinyal ora bakal disambungake menyang voltase luwih saka 15V kanggo ngrusak sumber daya
2. input lan output sambungan kuwalik, asil ing karusakan daya
3. sumber daya rusak amarga mlebu banyu
