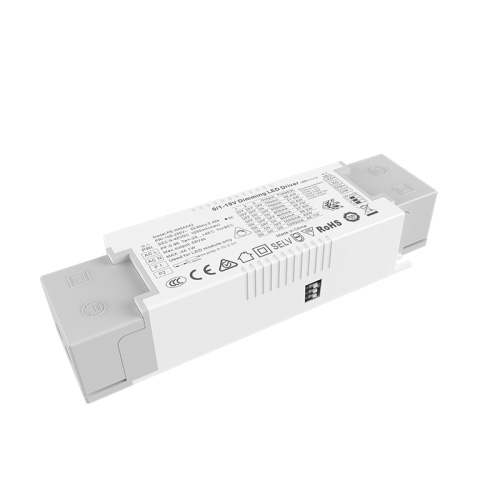

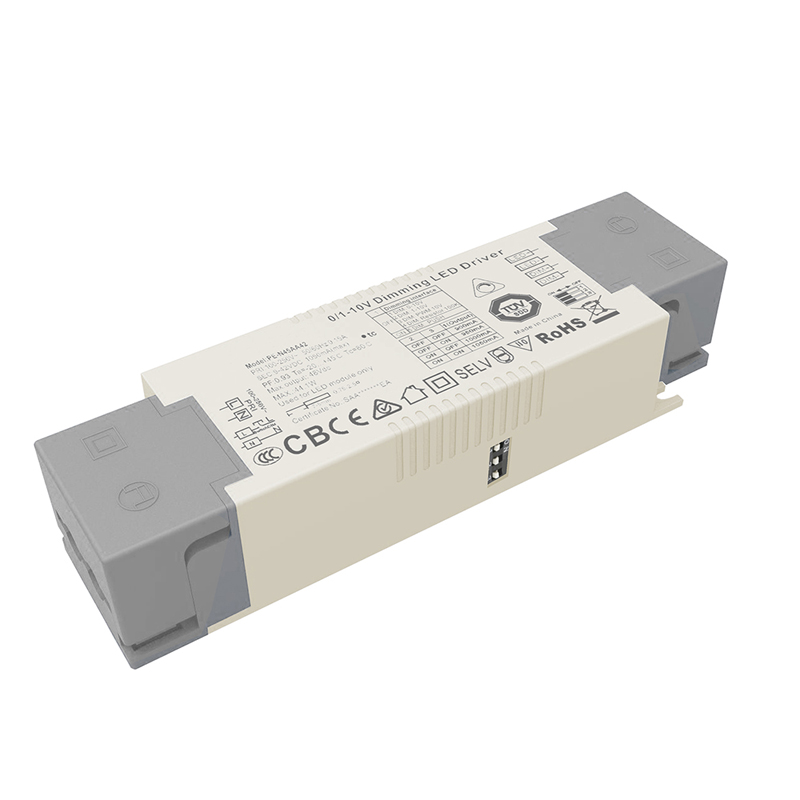

Temokake pilihan akeh Driver LED Dimmable 30W Konstan Saiki 0-10V saka China ing STARWELL.
0-10V / 1-10V / 10V PWM / 100K resistor dimming driver minangka salah sawijining driver dimming LED sing terus-terusan dikembangake dening perusahaanku kanthi faktor daya dhuwur, efisiensi dhuwur, presisi dhuwur, panggunaan chip kontrol saklar sing stabil lan stabil. lan komponen kinerja dhuwur ndadekake swara kurang, hemat energi, perlindungan lingkungan, umur dawa lan karakteristik liyane.
PE-N30AA/PE-N45AA duwe limang fungsi dimming, gunakake DIP switch kanggo milih PUSH dimming.
Antarmuka dimming:
1.0-10V dimming, nggunakake standar 0-10V / 100K 10V PWM dimming.
2. PUSH dimming.
30W Konstan Saiki 0-10V Dimmable LED Driver Fitur:
1. Integrated 0-10V/1-10V/10V PWM/100k resistor dimming
2. Output flicker free
3. Tegangan input AC universal internasional (100-265VAC)
4. Proteksi: short circuit-over voltase / liwat saiki
5. Teknologi konduksi panas silika gel, angin dingin alami
6. Built-in MCU, bakal adaptif 0-10V lan 1-10V
7. Rentang dimming 0-100%
8. Terminal penet cepet, aman lan trep
9. Sinyal desain internal disambungake menyang sirkuit mbalikke, salah siji sing ora bakal mengaruhi kontrol driver liyane
10. Proteksi kelas II
11. Garansi limang taun
12. sertifikat ENEC TUV CE SAA C-TICK
13. 147,5 * 42,5 * 30mm
30W Arus Konstan 0-10V Dimmable LED Dhaptar Model Driver:
0/1-10V dimming arus konstan
Seri | Dimming | Model | Input | daya | PF | Tegangan output | Output saiki |
PE-N30AA 21-30W |
0-10V 1-10V PWM 10 V 100K Resistor PUSH |
PE-N30AA42 | AC 100-250V | 29.4W | 0,88-0,96PF THD<10% | 9-42V | 350/400/450/500/550/600/650/700mA |
PE-N45AA 30-45W |
0-10V 1-10V PWM 10 V 100K Resistor PUSH |
PE-N45AA42 | AC 100-250V | 44.1W | 0,88-0,96PF THD<10% | 9-42V | 700/750/800/850/900/950/1000/1050mA |
Aplikasi Driver LED Dimmable 30W Arus Konstan 0-10V:
1. Led sumber cahya monochrome
2. villa cahya cerdas
3. sistem cahya cerdas nirkabel bisa diakses
4. cahya museum
5. cahya komersial dhuwur mburi
30W Arus Konstan 0-10V Dimmable LED Driver Spesifikasi:
Model | PE-N30AA42 | PE-N45AA42 | |
OUTPUT | Tegangan Output | 9-42Vdc | 9-42Vdc |
Tegangan Output Max | 42vdc | 42vdc | |
Tegangan Output Non-beban | 55vdc | 55vdc | |
Output Saiki | 550/600/650/700mA | 900/950/1000/1050mA | |
Daya Output | 4.95W~29.4W | 8.1W~44.1W | |
Tingkat Strobe | Ora Flicker | ||
Dimming Range | 0 ~ 100%, LED wiwitan ing 0.03% bisa. | ||
PWM Dimming Frekuensi | > 3600Hz | ||
Akurasi Saiki | ± 3% | ||
Ripple & Noise | ≤2V (Ora dimming) | ||
INPUT | Dimming Antarmuka | Resistansi 0-10V/1-10V/10V PWM/100K, arus kontrol sinyal <0.1mA | |
Range Tegangan Input | 100-250Vac | ||
Frekuensi | 50/60Hz | ||
Input Saiki | <0.37A | <0.56A | |
Faktor Daya | PF> 0.95/100V ac, kanthi beban penuh | PF> 0.95/100V ac, kanthi beban penuh | |
THD | 230Vac@THD ≤15% (beban kebak) | ||
Efisiensi (tys.) |
85% muatan kebak | 87% muatan kebak | |
Arus Inrush (Tip.) | wiwitan kadhemen 3.7A@230Vac | wiwitan kadhemen 5.6A@230Vac | |
Anti Surge | L-N: 2 kV | ||
Arus bocor | <0,25mA/230Vac | ||
LINGKUNGAN | Suhu Kerja | ta: 45 °C tc: 80 °C | |
Kelembapan Kerja | 20 ~ 95% RH, non-kondensasi | ||
Suhu panyimpenan, Kelembapan | -40~80°C, 10~95%RH | ||
Temp. Koefisien |
± 0,03%/°C(0-50) °C | ||
Getaran | 10~500Hz, 2G 12min./1siklus, periode 72min. saben sumbu X, Y, Z. | ||
pangayoman | Proteksi overheat | Intelligently nyetel utawa mateni saiki output yen suhu PCB ≥110 ° C, otomatis pulih. | |
Over Load Protection | Mateni output nalika dirating power≥102%, otomatis pulih. | ||
Proteksi sirkuit cendhak | Mateni kanthi otomatis yen ana short circuit, otomatis pulih. | ||
Non-beban Proteksi | output Tegangan Konstan. | ||
KESELAMATAN & EMC | Tahan Tegangan | I/P-O/P: 3750Vac | |
Ketahanan Isolasi | I/P-O/P: 100MΩ/500VDC/25°C/70%RH | ||
Standar Keamanan | IEC/EN61347-1, IEC/EN61347-2-13 | ||
EMC Emisi | EN55015, EN61000-3-2 Kelas C, IEC61000-3-3 | ||
Kekebalan EMC | EN61000-4-2,3,4,5,6,8,11, EN61547 | ||
Strobe Test Standar | IEEE 1789 | ||
LAIN | ukuran | 147.5(117)×43×30mm(L×W×H) | |
Packing | tas PE | ||
Bobot (G.W.) | 187/245g±10g |
ukuran:
Pilihan LED Arus:
0-10V dimming & PUSH koneksi Dimming:
Panggunaan pandhuan:
1. please mbayar manungsa waé kanggo prabédan antarane input lan output, nyambung bener, banjur daya ing.
2. mangga sambungake dhisik beban output DC, mbukak driver sawise mriksa; ing mode saiki pancet, yen daya ing sirkuit mbukak, please mateni driver lan ora bisa nyambung LED nganti energi listrik disimpen dening release output, utawa bisa ngrusak LED.
3. jinis driver iki mung diwatesi kanggo nggunakake lampu LED, sawetara voltase input AC100-265V, katun insulasi panas lan item liyane sing ngalangi boros panas prodhuk, kang conforms kanggo produk ing tartamtu. voltase output, sawetara saiki, suhu lingkungan nggunakake -20-45 derajat, lan lumahing ora bisa nutupi kondisi lingkungan, prodhuk iki seneng limang taun babar pisan free.
Kondisi abnormal lan cara perawatan sing cocog:
1.lampu LED ora padhang sawise driver disambungake ing pisanan, please mateni input AC lan mriksa minangka nderek:
1) apa utawa ora DC output kontak ala.
2) Apa polaritas output DC dibalik, utawa papan LED dilas anti.
3) apa input AC kontak ala, test sawise ngilangi gagal iki.
2. piranti wis sambungan apik, lampu LED, nanging kelip-kelip LED, please mateni input AC lan mriksa minangka nderek:
1).apa paramèter lan paramèter nyata cocog utawa ora.
2) .please pas wektune komunikasi karo kita yen sampeyan duwe pitakonan ing nggunakake, kita bakal nyoba kita paling apik kanggo ngatasi masalah karo sampeyan.
pratelan:
Gambar lan specifications mung kanggo referensi, ing jenis menang, specifications bisa ngganti karo kabar luwih.
Bedane antarane 0-10V lan 1-10V:
1. Nalika dimmer 0 / 10V disetel menyang 10V maksimal, arus output bakal tekan 100% saka output daya, lan padhange bakal tekan 100%. Nalika dimmer 0-10V disetel menyang 0V, arus bakal dadi minimal, lan lampu bakal dipateni; Nalika dimming 1-10V disetel menyang 1V, arus minimal lan lampu mati.
2. Bedane antarane 0-10V lan 1-10V dimming: beda wiwitan lan nutup voltase, 0-10V ing 0.7V, (ing min padhange) 1-10V ing 1.2V (ing min padhange).
3.Digital dimming driver 0-10V lan 1-10V dimming identifikasi otomatis loro mode dimming.
4. Sirkuit sinyal sing padha ngontrol cahya lan peteng ing wektu sing padha.
5.Dimmer (sistem dimming) dipérang dadi 0-10V lan 1-10V dimming sinyal.
Kompatibilitas 6.Dimming ana hubungane karo jarak kontrol garis sinyal lan jumlah sumber daya kontrol. Yen nomer gedhe banget utawa garis sinyal dawa banget, masalah kayata ora bisa diatur mudhun lan ora bisa diatur mati bakal kelakon.
