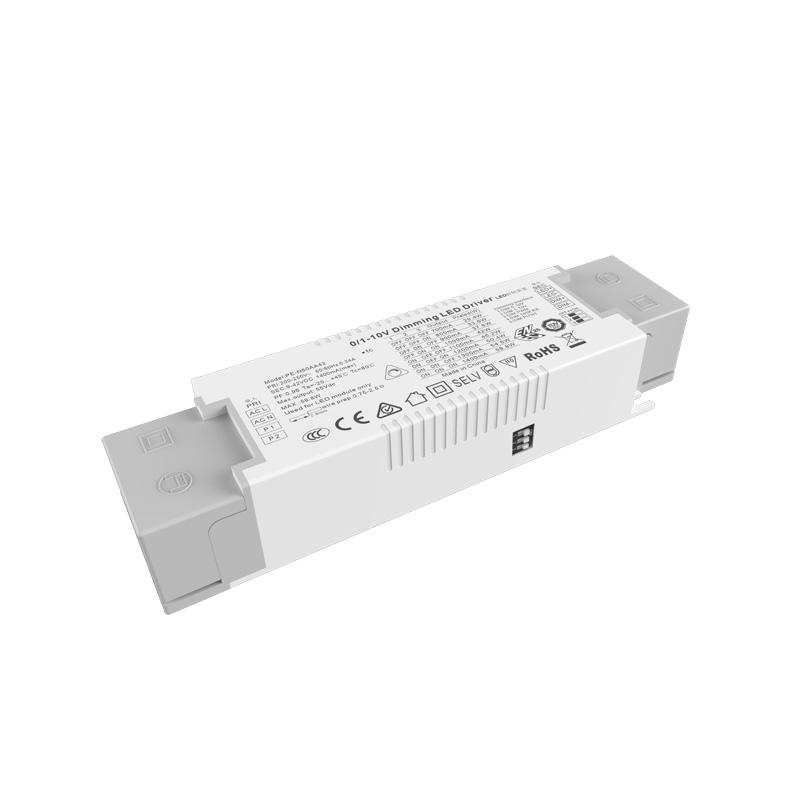

60W Konstan Saiki 0-10V Dimmable LED Driver
  • 60W Konstan Saiki 0-10V Dimmable LED Driver60W Konstan Saiki 0-10V Dimmable LED Driver
  • 60W Konstan Saiki 0-10V Dimmable LED Driver60W Konstan Saiki 0-10V Dimmable LED Driver

60W Konstan Saiki 0-10V Dimmable LED Driver

STARWELL minangka pabrikan lan pemasok 60W Konstan Saiki 0-10V Dimmable LED Driver ing China. Yen sampeyan nggoleki Driver LED Dimmable 60W Konstan Saiki 0-10V kanthi rega terjangkau, hubungi kita langsung!

Kirim Pitakonan

STARWELL minangka salah siji saka 60W Konstan Saiki 0-10V Dimmable LED Driver lan supplier ing China sing bisa grosir 60W Konstan Saiki 0-10V Dimmable LED Driver. Kita bisa nyedhiyakake layanan profesional lan rega sing luwih apik kanggo sampeyan. Yen sampeyan kasengsem ing 60W Konstan Saiki 0-10V Dimmable LED Driver, hubungi kita. We tindakake kualitas liyane njamin sing rega kalbu, darmabakti layanan.

CPU kanggo PE-N60AA digunakake kanggo ngontrol kurva dimming lan kontrol frekuensi campuran kanggo entuk padhange pemahaman sudut visual. Bahan mentahan sing dipigunakaké minangka merek baris pisanan lan chip sing diimpor dirancang kanggo dimming Ultra jero, cocog karo macem-macem sistem dimming cerdas ing pasar, kanthi akurat ngontrol padhang, nerangake kanthi wiwitan alon lan desain ukuran cilik Ultra.

60W Konstan Saiki 0-10V Dimmable LED Driver Fitur:

1. nggabungake sawetara sinyal dimming antarmuka

2. output kontrol digital tanpa stroboskopik

3. Input AC kisaran 200-250v

4. cooling online alam, Kelembapan-bukti, panas nindakake silikon proses boros panas

5. desain dimming jero

6. sawetara fungsi pangayoman

7. desain crimping, trep lan cepet

8. TUV CE SAA ENEC certified

9. 160*43*30mm


60W Arus Konstan 0-10V Dimmable LED Dhaptar Model Driver:

0/1-10V dimming arus konstan

Seri Dimming Model Input daya PF Tegangan output Output saiki
PE-N60AA

21-30W		 0-10V
1-10V
PWM 10 V
100K
Resistor PUSH		 PE-N60AA42 AC 200-250V 58,8W 0,88-0,96PF THD<10% 9-42V 700/800/900/1000/1100/1200/1300/1400mA



Aplikasi Driver LED Dimmable 60W Arus Konstan 0-10V:

1. Led sumber cahya monochrome

2. villa cahya cerdas

3. sistem cahya cerdas nirkabel bisa diakses

4. cahya museum

5. cahya komersial dhuwur mburi


60W Arus Konstan 0-10V Dimmable LED Driver Spesifikasi:


Model PE-N60AA42
OUTPUT Tegangan Output 9-42Vdc
Tegangan Output Max 42vdc
Tegangan Output Non-beban 55vdc
Output Saiki 700/800/900/1000/1100/1200/1300/1400mA
Daya Output 6.3W~58.8W
Tingkat Strobe Ora Flicker
Dimming Range 0 ~ 100%, LED wiwitan ing 0.3% bisa.
PWM Dimming Frekuensi > 3600Hz
Akurasi Saiki ± 5%
Mode daya mudhun Ora ana sinyal output padhange maksimum
INPUT Dimming Antarmuka 0-10V 1-10V sinyal antarmuka saiki <2ma / PUSH(P1 P2)
Range Tegangan Input 200-250Vac
Frekuensi 50/60Hz
Input Saiki <0.34A ac230v
Faktor Daya PF> 0.98/230V ac (beban penuh)
THD 230Vac@THD <8% (kanthi beban penuh)
Efisiensi (Tip.) 87%
Arus Inrush (Tip.) wiwitan kadhemen30A@230Vac
Anti Surge L-N: 1,5 kV
Arus bocor <0,25mA/230Vac
LINGKUNGAN Suhu Kerja ta: 45°C tc: 80°C
Kelembapan Kerja 20 ~ 95% RH, non-kondensasi
Suhu panyimpenan, Kelembapan -40~80°C, 10~95%RH
Koefisien suhu ± 0,03%/°C(0-50)°C
Getaran 10~500Hz, 2G 12min./1siklus, periode 72min. saben sumbu X, Y, Z.
pangayoman Proteksi overheat Intelligently nyetel utawa mateni saiki output yen suhu PCB ≥110 ° C, otomatis pulih.
Over Load Protection Mateni output nalika dirating power≥102%, otomatis pulih.
Proteksi sirkuit cendhak Mateni kanthi otomatis yen ana short circuit, otomatis pulih.
Non-beban Proteksi output Tegangan Konstan.
KESELAMATAN
& EMC		 Tahan Tegangan I/P-O/P: 3750Vac
Ketahanan Isolasi I/P-O/P: 100MΩ/500VDC/25°C/70%RH
Standar Keamanan IEC/EN61347-1, IEC/EN61347-2-13
EMC Emisi EN55015, EN61000-3-2 Kelas C, IEC61000-3-3
Kekebalan EMC EN61000-4-2,3,4,5,6,8,11, EN61547
Strobe Test Standar IEEE 1789
LAIN ukuran 160(130)×43×30mm(L×W×H)
Packing kothak
Bobot (G.W.) 260g±10g



ukuran:

Pilihan Driver LED Saiki:

Diagram peredupan 0-10V / 1-10V:

PUSH dimming diagram:

Panganggone panuntun dhumateng:

Yen ora ditemtokake, kabeh spesifikasi lan paramèter diukur ing input 230VAC, beban sing dirating lan Suhu Sekitar 25 ℃

Prodhuk iki nduweni tutup garis penet ing input, kanthi clamping ngunci dhewe, bisa dibukak nganggo obeng, banjur sampeyan bakal weruh terminal input disambungake karo garis AC L lan jeruk null N, Terminal output nyambungake a miturut label produk, sok dong mirsani kutub positif lan negatif.

1: Mangga mbayar manungsa waé kanggo mbedakake antarane input lan metu sijine, nyambung bener, banjur daya ing

2: mangga sambungake dhisik beban output DC, bukak driver sawise mriksa; ing mode saiki pancet, yen daya ing sirkuit mbukak, please mateni driver lan ora bisa nyambung LED nganti energi listrik disimpen dening release output, utawa bisa ngrusak LED;

3. jinis driver iki mung diwatesi kanggo nggunakake lampu LED, sawetara voltase input AC100-250V, katun insulasi panas lan item liyane sing ngalangi boros panas prodhuk, kang conforms kanggo produk ing tartamtu. voltase output, sawetara saiki, suhu lingkungan nggunakake -20-45 derajat, lan lumahing ora bisa nutupi kondisi lingkungan, prodhuk iki seneng 5 taun babar pisan free.

1.lampu LED ora padhang sawise driver dimming disambungake ing pisanan, please mateni input AC lan mriksa minangka nderek:

1) apa utawa ora DC output kontak ala;

2) apa DC polaritas output kuwalik, utawa Papan LED gandheng anti;

3) apa input AC kontak ala, test sawise ngilangi gagal iki;

2. piranti wis sambungan apik, lampu LED, nanging kelip-kelip LED, please mateni input AC lan mriksa minangka nderek:

1).apa paramèter lan paramèter nyata cocog utawa ora.

2) .please pas wektune komunikasi karo kita yen sampeyan duwe pitakonan ing nggunakake, kita bakal nyoba kita paling apik kanggo ngatasi masalah karo sampeyan.


Bedane antarane 0-10V lan 1-10V:

1. Nalika dimmer 0 / 10V disetel menyang 10V maksimal, arus output bakal tekan 100% saka output daya, lan padhange bakal tekan 100%. Nalika dimmer 0-10V disetel menyang 0V, arus bakal dadi minimal, lan lampu bakal dipateni; Nalika dimming 1-10V disetel menyang 1V, arus minimal lan lampu mati.

2. Bedane antarane 0-10V lan 1-10V dimming: beda wiwitan lan nutup voltase, 0-10V ing 0.7V, (ing min padhange) 1-10V ing 1.2V (ing min padhange).

3.Digital dimming driver 0-10V lan 1-10V dimming identifikasi otomatis loro mode dimming.

4. Sirkuit sinyal sing padha ngontrol cahya lan peteng ing wektu sing padha.

5.Dimmer (sistem dimming) dipérang dadi 0-10V lan 1-10V dimming sinyal.

Kompatibilitas 6.Dimming ana hubungane karo jarak kontrol garis sinyal lan jumlah sumber daya kontrol. Yen nomer gedhe banget utawa garis sinyal dawa banget, masalah kayata ora bisa diatur mudhun lan ora bisa diatur mati bakal kelakon.


Cakupan garansi produk:

1. antarmuka kontrol sinyal ora bakal disambungake menyang voltase luwih saka 15V kanggo ngrusak sumber daya

2. input lan output sambungan kuwalik, asil ing karusakan daya

3. sumber daya rusak amarga mlebu banyu
