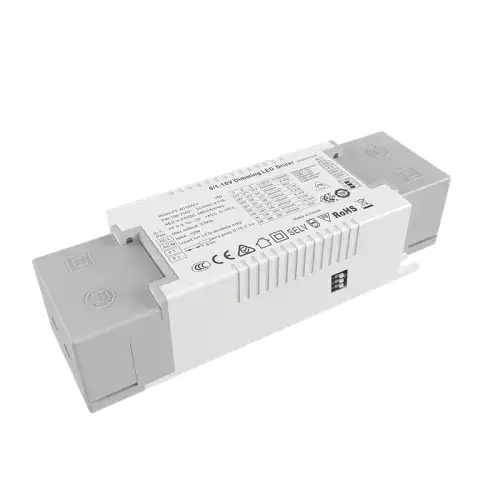

10W Konstan Saiki 0 / 1-10V CCT Dimmable LED Driver
  • 10W Konstan Saiki 0 / 1-10V CCT Dimmable LED Driver10W Konstan Saiki 0 / 1-10V CCT Dimmable LED Driver

10W Konstan Saiki 0 / 1-10V CCT Dimmable LED Driver

Pabrik Starwell kualitas dhuwur 10W Konstan Saiki 0 / 1-10V CCT Dimmable LED Driver duwe loro kontrol sinyal saluran sing diadopsi, siji saluran yaiku 0 / 1-10v kanggo ngontrol padhange, saluran liyane yaiku 0 / 1-10v kanggo ngontrol suhu warna, CPU ngontrol kurva dimming, lan kontrol frekuensi campuran.

Kirim Pitakonan

Minangka produsen profesional, Starwell kepengin nyedhiyakake Driver LED Dimmable 0/1-10V CCT Konstan 10W sing berkualitas tinggi. Kanggo entuk pemahaman visual saka padhange, bahan mentahan digunakake merek pisanan, chip diimpor desain dimming Ultra jero, cocog karo macem-macem sistem dimming cerdas ing pasar kontrol Precise saka suhu werna, desain ukuran Ultra cilik (yen sistem punika campuran mode suhu werna karo loro saluran imbuhan padhange ing wektu sing padha, iku perlu kanggo ngatur program).


Spesifikasi

Model

PE-FN10ACA42

PE-FN20ACA42

OUTPUT

Tegangan Output

9-42Vdc 9-41Vdc 9-37Vdc 9-33Vdc 9-28Vdc

9-42Vdc

Tegangan Output Max

42vdc

42vdc

Tegangan Output Non-beban

45vdc

45vdc

Output Saiki

120/180/200/240/270/300/350mA

200/250/280/300/350/400/450/500mA

Daya Output

1.5W~9.8W

2W~21W

Tingkat Strobe

Ora Flicker

Dimming Range

0 ~ 100%, LED miwiti ing 0.03% bisa.

PWM Dimming Frekuensi

> 3600Hz

Akurasi Saiki

± 5%

Mode daya mudhun

Ora ana sinyal output padhange maksimum

INPUT

Dimming Antarmuka

0-10V 1-10V sinyal antarmuka saiki <2ma

Range Tegangan Input

200-250Vac

Frekuensi

50/60Hz

Input Saiki

<0.045A ac230v

<0.055A ac230v

Faktor Daya

PF>0.94/230V  ac (kanthi beban penuh)

PF>0.95/230V ac (beban penuh)

THD

230Vac@THD <14% (kanthi beban penuh)

Efisiensi (Tip.)

81%

86%

Arus Inrush (Tip.)

wiwitan kadhemen25A@230Vac

Anti Surge

L-N: 1,8 kV

Arus bocor

<0,25mA/230Vac

LINGKUNGAN

Suhu Kerja

ta: 45°C  tc: 80 °C

Kelembapan Kerja

20 ~ 95% RH, non-kondensasi

Suhu panyimpenan, Kelembapan

-40 ~ 80 ° C, 10 ~ 95% RH

Koefisien suhu

± 0,03%/°C(0-50)°C

Getaran

10~500Hz, 2G 12min./1siklus, periode 72min. saben sumbu X, Y, Z.

pangayoman

Proteksi overheat

Intelligently nyetel utawa mateni saiki output yen suhu PCB ≥110 ° C, otomatis pulih.

Over Load Protection

Mateni output nalika dirating power≥102%, otomatis pulih.

Proteksi sirkuit cendhak

Mateni kanthi otomatis yen ana short circuit, otomatis pulih.

Non-beban Proteksi

output Tegangan Konstan.

KESELAMATAN & EMC

Tahan Tegangan

I/P-O/P: 3750Vac

Ketahanan Isolasi

I/P-O/P: 100MΩ/500VDC/25°C/70%RH

Standar Keamanan

IEC/EN61347-1, IEC/EN61347-2-13

EMC Emisi

/

Kekebalan EMC

/

Strobe Test Standar

IEEE 1789

LAIN

ukuran

130 × 37 × 22.6mm (L × W × H)

Packing

tas PE

Bobot (G.W.)

85g±10g


Fatures:

1.integrate macem-macem dimming lan werna cocog antarmuka 2.0/1-10v imbuhan padhange, werna cocog suhu

3. output kontrol digital tanpa stroboskopik

4. Input AC kisaran 200-250v

5. cooling online alam, Kelembapan-bukti, panas nindakake silikon proses boros panas

6. desain dimming jero

7. sawetara fungsi pangayoman

8. desain crimping, trep lan cepet


Aplikasi:

1. Led sumber cahya werna dual

2. villa cahya cerdas

3. sistem cahya cerdas nirkabel bisa diakses

4. cahya museum

5. cahya komersial dhuwur mburi

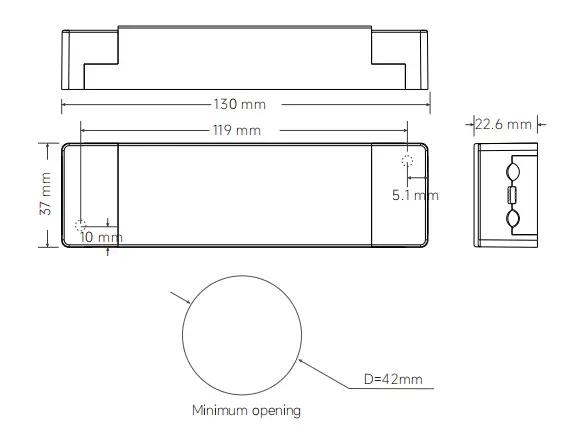

ukuran:

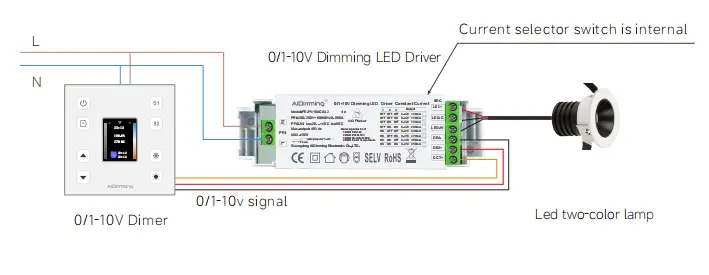

Wiring:

1. Input terminal wiring: cocok kanggo kabel gauge 22awg-14awg (0.5mm2 - 1.5mm2), stripping mbutuhake timah 9-10mm

2. Output kabel terminal: cocok kanggo kabel gauge 22awg-12awg (0.5mm2 - 1.5mm2), stripping mbutuhake 6-7mm timah

3. Kabel terminal output: kutub positif LED output minangka terminal umum, lan telung kabel sing dipimpin bisa

disambungake menyang salah siji kutub positif.


Pandhuan kanggo nggunakake:

Yen ora ditemtokake, kabeh spesifikasi lan paramèter diukur ing input 230VAC, beban sing dirating lan 25 ℃ Ambient

Suhu

Produk iki duwe tutup garis penet ing input, kanthi clamping ngunci dhewe, bisa dibukak nganggo obeng, banjur sampeyan

bakal weruh terminal input disambungake karo AC line L lan null jeruk N, Terminal output nyambung a miturut

label produk, sok dong mirsani kutub positif lan negatif.

**1: Mangga digatekake bedane antarane input lan metu, sambungake kanthi bener, banjur uripake

** 2: mangga sambungake dhisik beban output DC, bukak driver sawise mriksa; ing mode saiki pancet, yen daya

ing sirkuit mbukak, mateni driver lan ora bisa nyambung LED nganti energi listrik disimpen dening output

ngeculake, utawa bisa ngrusak LED;

** 3. jinis driver iki mung diwatesi kanggo nggunakake lampu LED, sawetara voltase input AC200-250V, insulasi panas

katun lan barang-barang liyane sing ngalangi panyebaran panas produk, sing cocog karo produk miturut syarat sing ditemtokake

voltase output, sawetara saiki, suhu lingkungan nggunakake -20-45 derajat, lan lumahing ora bisa nutupi

kahanan lingkungan, produk iki seneng 5 taun babar pisan free.

1.lampu LED ora padhang sawise driver dimming disambungake ing pisanan, please mateni input AC lan mriksa

minangka nderek:

1) apa utawa ora DC output kontak ala;

2) apa DC polaritas output kuwalik, utawa Papan LED gandheng anti;

3) apa input AC kontak ala, test sawise ngilangi gagal iki;

2. piranti wis sambungan apik, lampu LED, nanging kelip-kelip LED, please mateni input AC lan mriksa minangka nderek:

1).apa paramèter lan paramèter nyata cocog utawa ora.

2) .please pas wektune komunikasi karo kita yen sampeyan duwe pitakonan ing nggunakake, kita bakal nyoba kita paling apik kanggo ngatasi masalah karo sampeyan.


Bedane antarane 0-10V lan 1-10V:

1. Nalika dimmer 0 / 10V disetel menyang 10V maksimum, arus output bakal tekan 100% saka output daya, lan padhange bakal tekan 100%. Nalika dimmer 0-10V disetel kanggo 0V, saiki bakal dadi

minimal, lan cahya bakal dipateni; Nalika dimming 1-10V diatur dadi 1V, arus minimal lan lampu mati.

2. Bedane antarane 0-10V lan 1-10V dimming: beda voltase wiwitan lan nutup, 0-10V urip ing 0.7V,

(padhange min) 1-10V urip ing 1.2V (padhange min).

3. Digital dimming driver 0-10V lan 1-10V dimming identifikasi otomatis rong mode dimming.

4. Sirkuit sinyal sing padha ngontrol cahya lan peteng bebarengan.

5. Dimmer (sistem peredupan) dipérang dadi sinyal peredupan 0-10V lan 1-10V.

6. Kompatibilitas dimming ana hubungane karo jarak kontrol garis sinyal lan jumlah sumber daya kontrol.

Yen nomer gedhe banget utawa garis sinyal dawa banget, masalah kayata ora bisa diatur mudhun lan ora bisa diatur mati bakal kelakon.



Hot Tags: 10W Konstan Saiki 0/1-10V CCT Dimmable LED Driver, China, Pabrik, Supplier, Pabrik, Ing Simpenan, Massal, Kualitas, Classy, ​​CE
